PackagePDIP
Current80mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN75ALS160N technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Low Level Output Current | 48mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Drivers | 8 |
| Number of Receivers | 8 |
| Number of Transceivers | 1 |
| Number of Transmitters | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 80mA |
| Weight | 0.042297oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75ALS160N Datasheet
Download the complete datasheet for Texas Instruments SN75ALS160N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

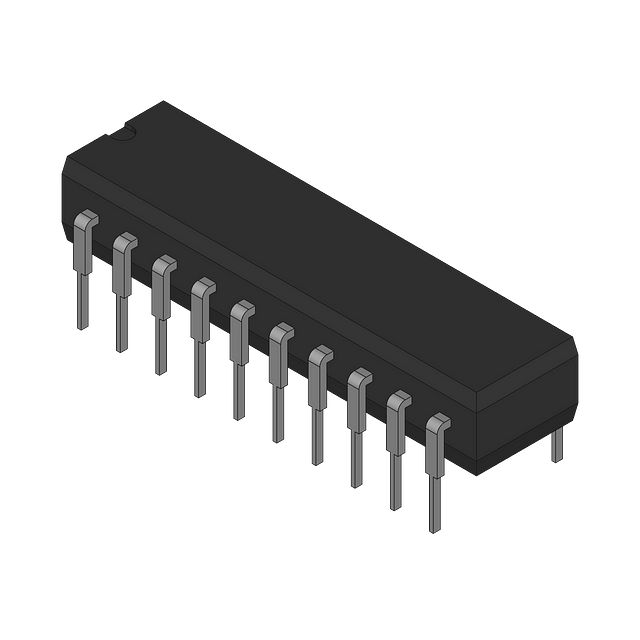

Product Images
