PackageN
Current250uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN75C1154N technical specifications.
General
| Package/Case | N |
| Data Rate | 95Kbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 250uA |
| Weight | 0.042297oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75C1154N Datasheet
Download the complete datasheet for Texas Instruments SN75C1154N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

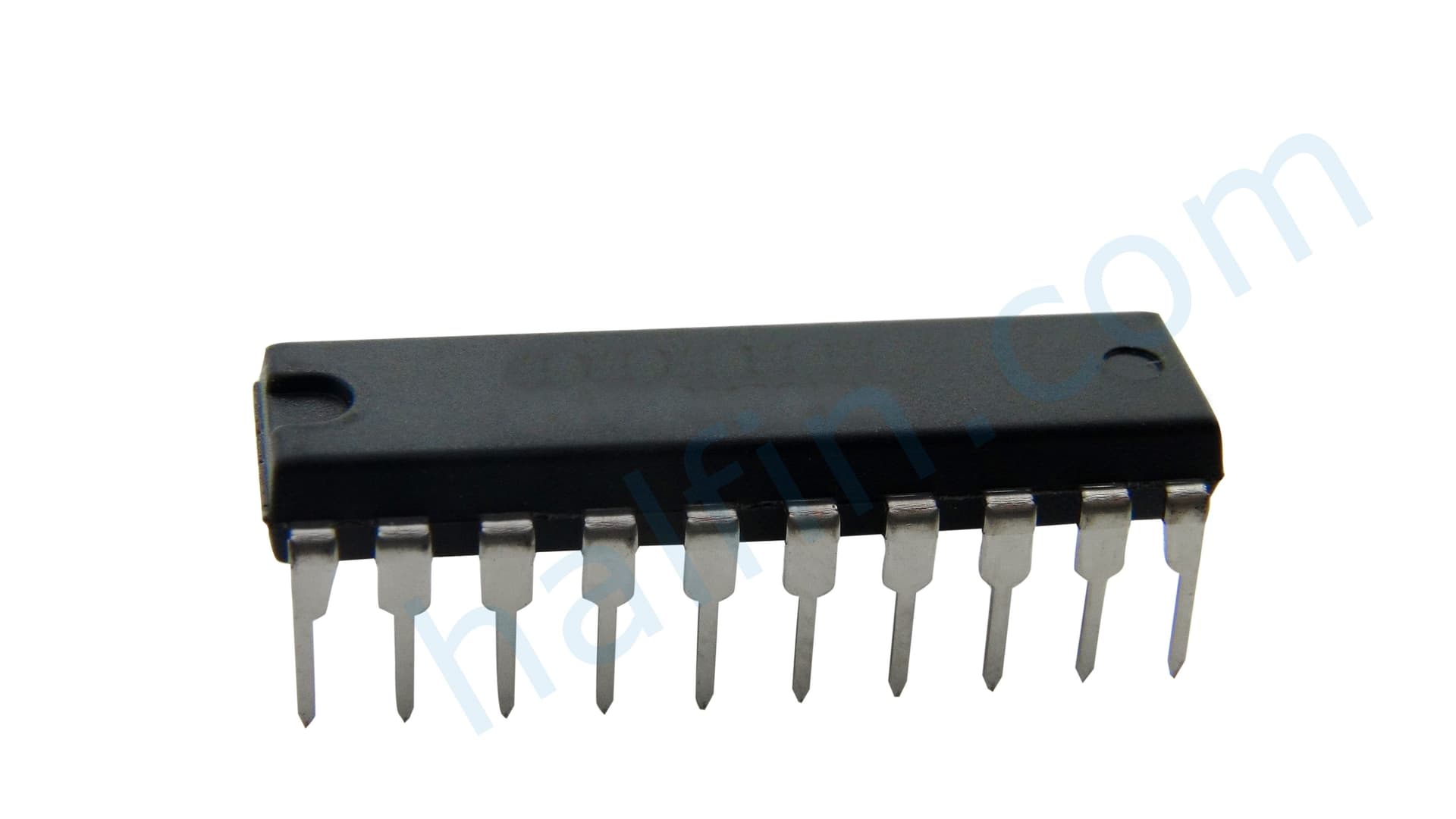

Product Images
