Full-duplex bus transceiver IC featuring 3 drivers and 5 receivers, operating at a 120Kbps data rate. This through-hole component supports a dual supply voltage of 5V, with an operating range from 4.5V to 13.2V. The RoHS compliant device is housed in a 20-pin PDIP package, suitable for applications within a 0°C to 70°C temperature range.
PackageN
Current750uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN75C185N technical specifications.
General
| Package/Case | N |
| Data Rate | 120Kbps |
| Dual Supply Voltage | 5V |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 24.33mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 13.2V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 3 |
| Number of Receivers | 5 |
| Number of Transceivers | 1 |
| Number of Transmitters | 3 |
| Operating Supply Voltage | 5V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 750uA |
| Weight | 0.042297oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75C185N Datasheet
Download the complete datasheet for Texas Instruments SN75C185N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

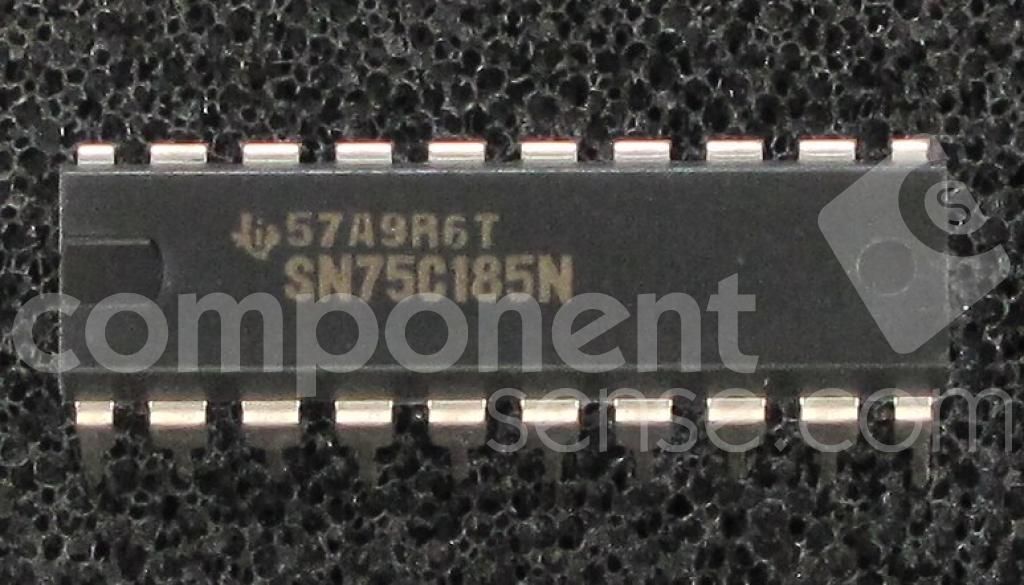

Product Images
