LVDS transmitter with a 135Mbps data rate, featuring 28 drivers and 4 elements. This integrated circuit operates from a 3V to 3.6V supply voltage, with a typical 3.3V operating voltage. Packaged in a 56-pin TSSOP with dimensions of 14mm length, 6.1mm width, and 1.15mm height, it offers a maximum power dissipation of 1.73W. The component is RoHS compliant and operates within a temperature range of -10°C to 70°C.
PackageTSSOP
Power1.73W
Quick Jump:
Technical Specifications
Texas Instruments SN75LVDS83BDGG technical specifications.
General
Package/Case
TSSOP
Data Rate
135Mbps
Height
1.15mm
Lead Free
Lead Free
Length
14mm
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Drivers
28
Number of Elements
4
Number of Receivers
4
Operating Supply Voltage
3.3V
Package Quantity
35
Packaging
Rail/Tube
Power Dissipation
1.73W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FlatLink™
Weight
0.008917oz
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN75LVDS83BDGG Datasheet
Download the complete datasheet for Texas Instruments SN75LVDS83BDGG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

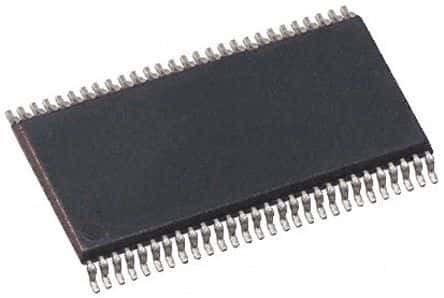

Product Images
