Texas Instruments
SN75LVDS83BZQLR
10- to 135-MHz 28-bit LVDS transmitter/serializer & FlatLink™ integrated circuit 56-BGA MICROSTAR JUNIOR 0 to 0
PackageVFBGA
Power2W
Quick Jump:
Technical Specifications
Texas Instruments SN75LVDS83BZQLR technical specifications.
General
| Package/Case | VFBGA |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 1.111W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Drivers | 28 |
| Number of Elements | 4 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FlatLink™ |
| Weight | 0.002056oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75LVDS83BZQLR Datasheet
Download the complete datasheet for Texas Instruments SN75LVDS83BZQLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

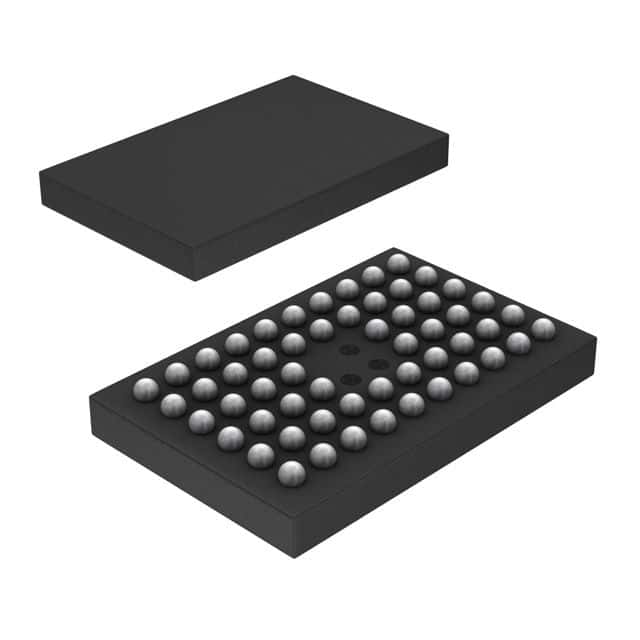

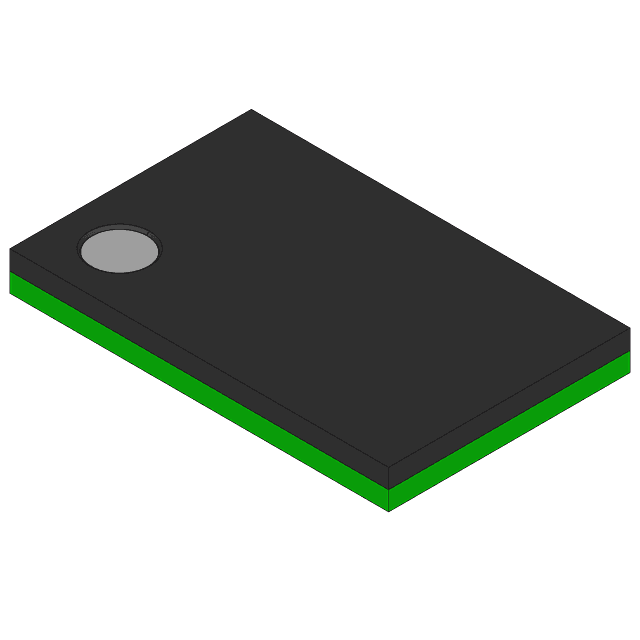

Product Images
