Technical Specifications
Texas Instruments SN75LVDS83DGGG4 technical specifications.
General
| Package/Case | TSSOP |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 110mA |
| Number of Drivers | 4 |
| Number of Elements | 4 |
| Number of Receivers | 28 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.377W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | FlatLink™ |
| Weight | 0.008229oz |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75LVDS83DGGG4 Datasheet
Download the complete datasheet for Texas Instruments SN75LVDS83DGGG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

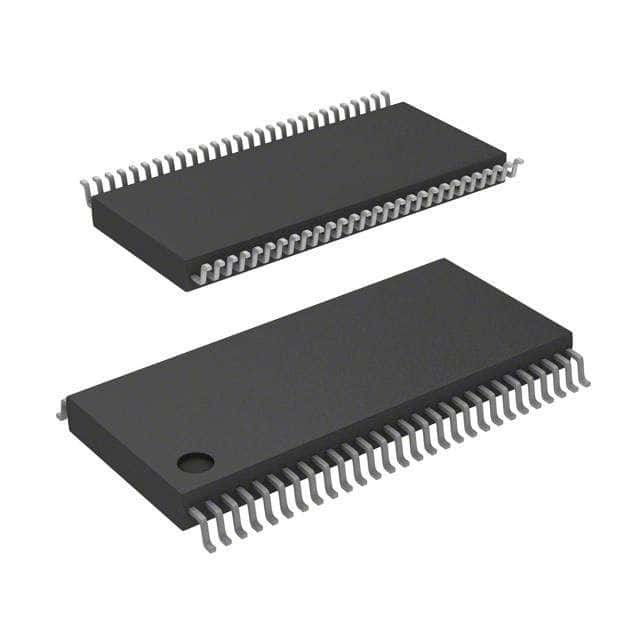

Product Images
