Technical Specifications
Texas Instruments SN75LVDS86ADGGG4 technical specifications.
General
| Package/Case | TSSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Nominal Supply Current | 68mA |
| Number of Drivers | 21 |
| Number of Elements | 3 |
| Number of Receivers | 3 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.637W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | FlatLink™ |
| Weight | 0.007076oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75LVDS86ADGGG4 Datasheet
Download the complete datasheet for Texas Instruments SN75LVDS86ADGGG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

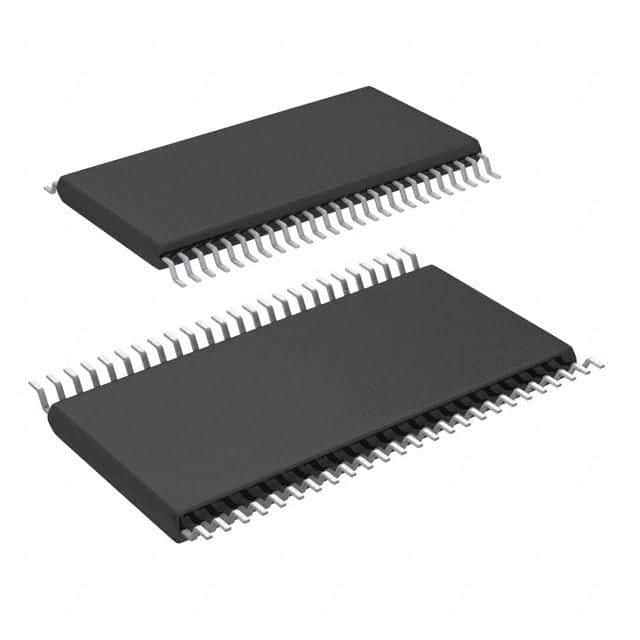

Product Images
