The SNJ54AC245J is an 8-bit bidirectional transceiver with 3-STATE outputs. It is packaged in a CDIP and is rated for operation between -55°C and 125°C. The device is a CMOS logic function and is not RoHS compliant due to containing lead. It is available in a rail/Tube packaging and is suitable for through hole mounting.
PackageCDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SNJ54AC245J technical specifications.
General
| Package/Case | CDIP |
| Direction | Bidirectional |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Output Type | 3-STATE |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 14.5ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | CMOS |
| Turn-On Delay Time | 14.5ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SNJ54AC245J Datasheet
Download the complete datasheet for Texas Instruments SNJ54AC245J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

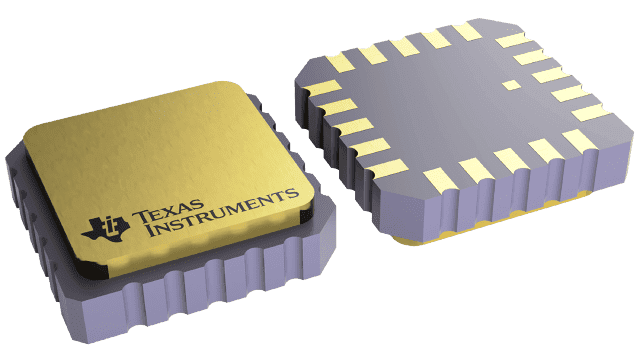

Product Images
