Technical Specifications
Texas Instruments SNJ54LS280W technical specifications.
General
| High Level Output Current | -400uA |
| Lead Free | Contains Lead |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Bits | 2 |
| Number of Outputs | 9 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SNJ54LS280W Datasheet
Download the complete datasheet for Texas Instruments SNJ54LS280W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

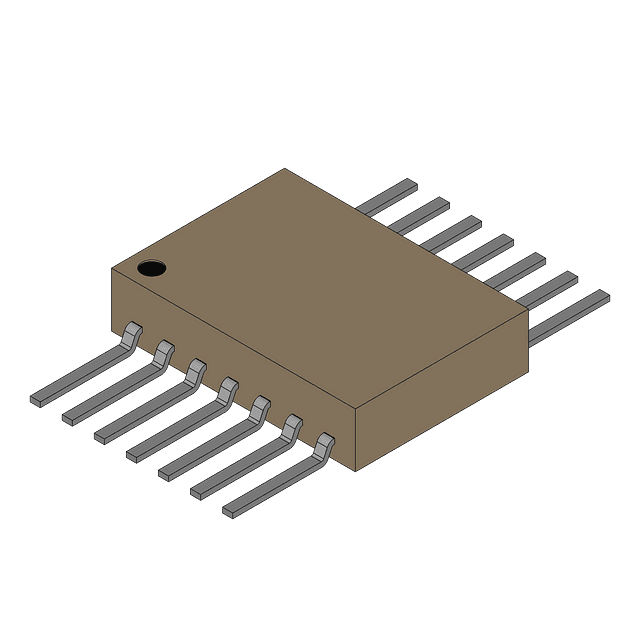

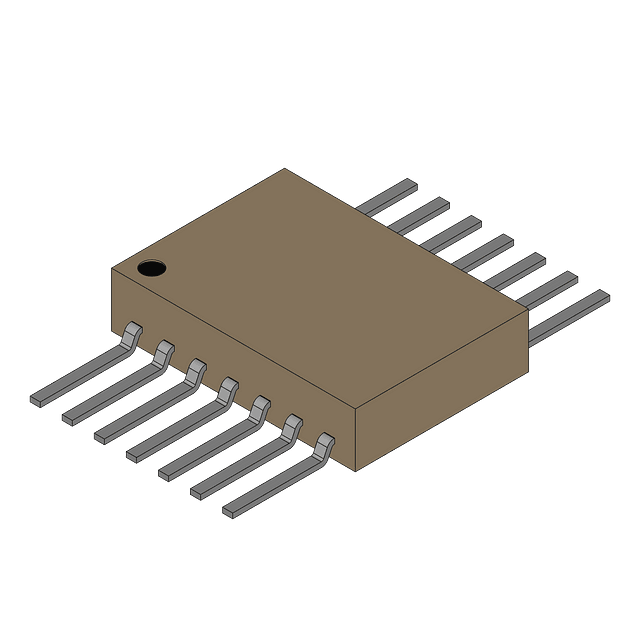

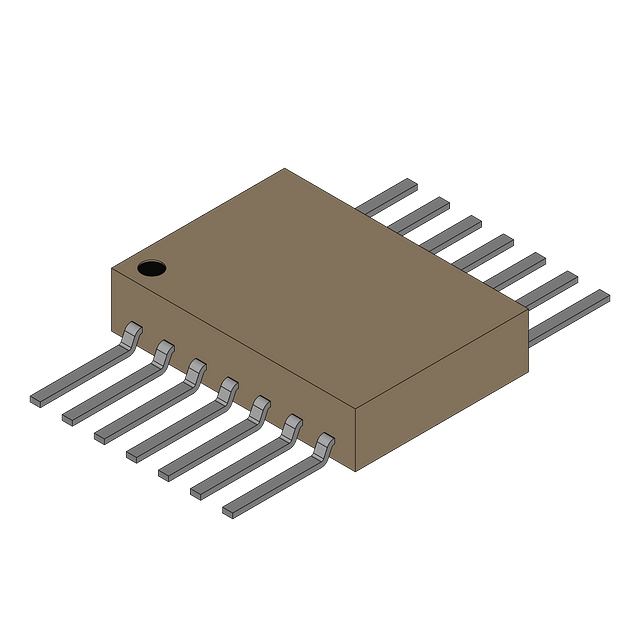

Product Images
