Technical Specifications
Texas Instruments SNJ54LVC04AJ technical specifications.
General
Package/Case
CDIP
High Level Output Current
-24mA
Lead Free
Contains Lead
Logic Function
Inverter
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
6
Number of Elements
6
Number of Gates
6
Packaging
Rail/Tube
Propagation Delay
5.5ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
No
Technology
CMOS
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments SNJ54LVC04AJ Datasheet
Download the complete datasheet for Texas Instruments SNJ54LVC04AJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

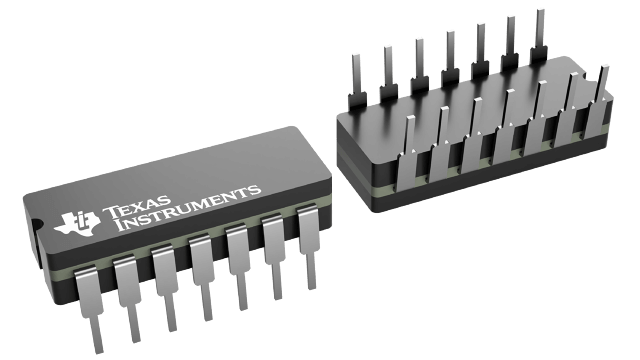

Product Images
