High-performance Class-D audio amplifier featuring PWM input, delivering 160-W stereo or 300-W mono output. Operates with a supply voltage range of 10.8V to 52.5V, supporting a dual supply of 50V. Designed for 3-ohm load impedance, with a maximum output power of 210W and total output power of 400W. Encased in a 44-pin HTSSOP package with SMD/SMT termination, this lead-free component operates from 0°C to 70°C.
PackageHTSSOP
Current15mA
Power400W
Quick Jump:
Technical Specifications
Texas Instruments TAS5162DDV technical specifications.
General
Package/Case
HTSSOP
Dual Supply Voltage
50V
Height
1.2mm
Lead Free
Lead Free
Length
14mm
Load Impedance
3R
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Power
210W
Max Power Dissipation
2.5W
Max Supply Voltage
52.5V
Min Supply Voltage
10.8V
Number of Channels
2
Operating Supply Voltage
50V
Output Power
400W
Package Quantity
35
Packaging
Rail/Tube
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PurePath Digital™
Supply Current
15mA
Supply Type
Triple
Termination
SMD/SMT
Thickness
1.15mm
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5162DDV Datasheet
Download the complete datasheet for Texas Instruments TAS5162DDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

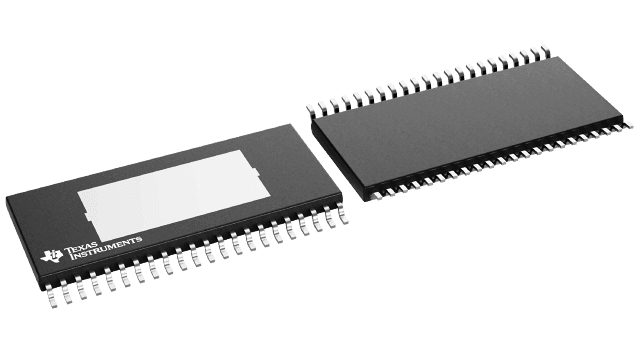

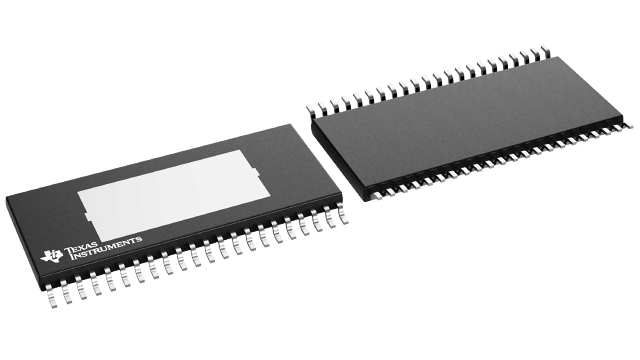

Product Images
