Texas Instruments
TAS5186ADDVR
210-W 5.1 channel, 0- to 34-V supply, PWM input Class-D audio amplifier 44-HTSSOP 0 to 70
210-W 5.1 channel, 0- to 34-V supply, PWM input Class-D audio amplifier 44-HTSSOP 0 to 70
PackageHTSSOP EP
Current22mA
Power30W
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments TAS5186ADDVR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments TAS5186ADDVR technical specifications.
General
| Package/Case | HTSSOP EP |
| Dual Supply Voltage | 28V |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 60W |
| Number of Circuits | 6 |
| Output Power | 30W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PurePath Digital™ |
| Supply Current | 22mA |
| Supply Type | Triple |
| Thickness | 1.15mm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TAS5186ADDVR Datasheet
Download the complete datasheet for Texas Instruments TAS5186ADDVR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

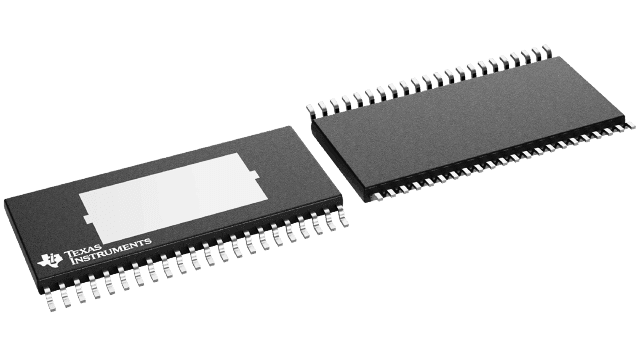

Product Images
