8-channel PWM modulator with integrated ASRC and audio processor. Features 60-bit resolution and 105dB Signal to Noise Ratio. Operates from a 3V to 3.6V supply voltage with a typical 220mA current. Surface mountable in a 56-HTSSOP package, measuring 14.1mm x 6.2mm x 1.05mm. Supports I2C interface and operates across a -40°C to 85°C temperature range.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TAS5548DCA technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Interface
I2C
Lead Free
Lead Free
Length
14.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
8
Number of Converters
8
Operating Supply Current
220mA
Operating Supply Voltage
3.3V
Package Quantity
35
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
60b
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
105dB
Thickness
1.15mm
Weight
0.008356oz
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5548DCA Datasheet
Download the complete datasheet for Texas Instruments TAS5548DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

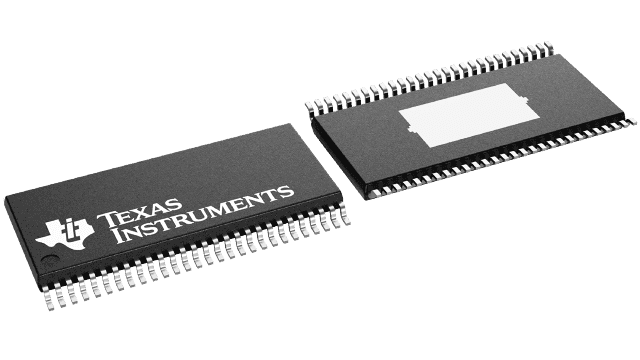

Product Images
