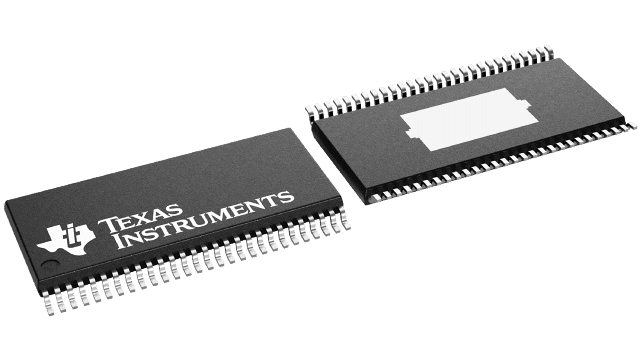

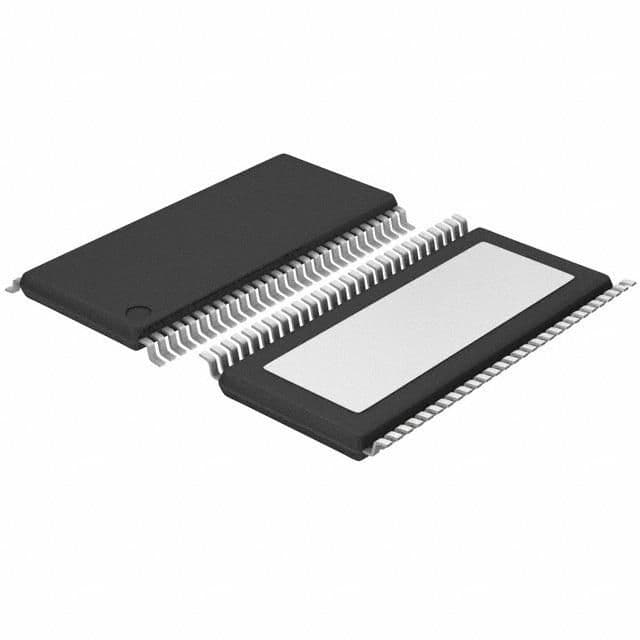

Class-D audio amplifier, 20W stereo output, operating from a 10V to 26V supply range with a typical 24V dual supply voltage. Features PWM input, 8 Ohm load impedance, and a maximum power dissipation of 5.5W. Encased in an HTSSOP package, this component operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TAS5602DCA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP |
| Dual Supply Voltage | 24V |
| Lead Free | Lead Free |
| Load Impedance | 8R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 20W |
| Max Power Dissipation | 5.5W |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 26V |
| Min Supply Voltage | 10V |
| Number of Channels | 4 |
| Operating Supply Voltage | 24V |
| Output Power | 20W |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Power Dissipation | 5.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAS5602 |
| Supply Current | 50mA |
| Supply Type | Single, Dual |
| Termination | SMD/SMT |
| Weight | 0.008356oz |
| RoHS | Compliant |
