Texas Instruments
TAS5624ADDV
150-W stereo, 400-W mono, 12- to 38-V, PWM input Class-D audio amplifier w/ thermal enhancement 44-HTSSOP 0 to 70
PackageHTSSOP
MountingSurface Mount
Power150W
Quick Jump:
Technical Specifications
Texas Instruments TAS5624ADDV technical specifications.
General
| Package/Case | HTSSOP |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 14.1mm |
| Load Impedance | 4R |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 400W |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 12V |
| Output Power | 150W |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PurePath™ HD |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TAS5624ADDV Datasheet
Download the complete datasheet for Texas Instruments TAS5624ADDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

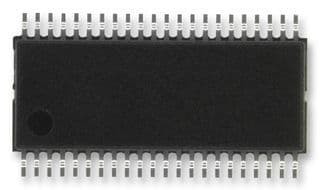

Product Images
