Texas Instruments
TAS5630PHD
Analog input 300W Stereo class D amplifier with integrated feedback 64-HTQFP 0 to 70
PackageHTQFP
Current22.5mA
MountingSurface Mount
Power600W
Quick Jump:
Technical Specifications
Texas Instruments TAS5630PHD technical specifications.
General
Package/Case
HTQFP
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Power
600W
Max Power Dissipation
2.7W
Max Supply Voltage
52.5V
Min Supply Voltage
25V
Mount
Surface Mount
Output Power
600W
Package Quantity
90
Packaging
Tray
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
PurePath™ HD
Supply Current
22.5mA
Voltage Gain
23dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5630PHD Datasheet
Download the complete datasheet for Texas Instruments TAS5630PHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

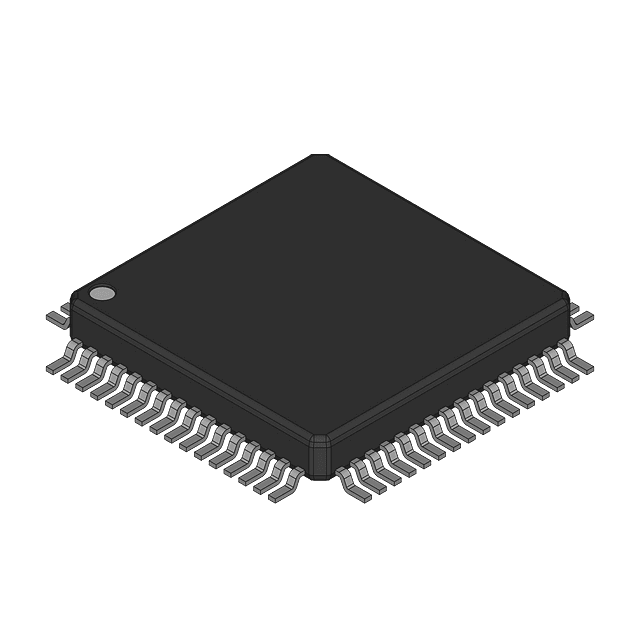

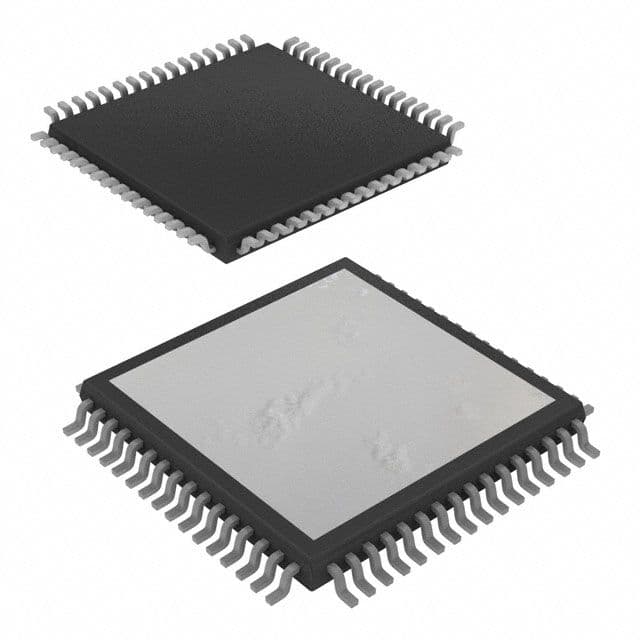

Product Images
