20W stereo, open-loop Class-D audio amplifier with digital input and hardware control. Features a 0 to 21V supply range, 8 Ohm load impedance, and 20W maximum output power. Operates from 0°C to 85°C in a 64-HTQFP package. Dual supply voltage up to 18V, with a minimum DC supply voltage of 3V and a maximum of 21V. SMD/SMT termination for tray packaging.
PackageHTQFP
Current10mA
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TAS5701PAP technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
18V
Lead Free
Lead Free
Load Impedance
8R
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Output Power
20W
Max Power Dissipation
600mW
Max Supply Current
10mA
Min Supply Voltage (DC)
3V
Max Supply Voltage
21V
Min Supply Voltage
10.8V
Number of Channels
3
Output Power
20W
Package Quantity
160
Packaging
Tray
Power Dissipation
600mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Supply Type
Quint
Termination
SMD/SMT
Weight
0.009108oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5701PAP Datasheet
Download the complete datasheet for Texas Instruments TAS5701PAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

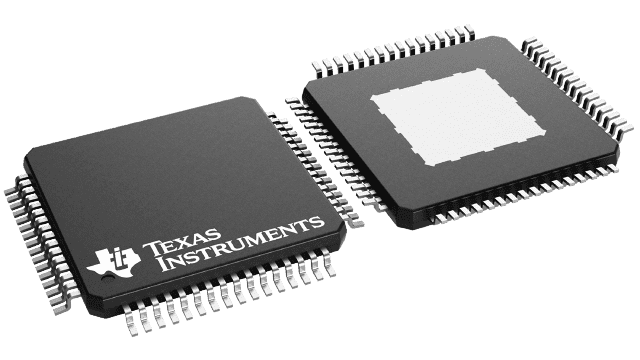

Product Images
