Texas Instruments
TAS5701PAPR
20-W stereo, 0- to 21-V supply, digital input, open loop Class-D audio amplifier w/ H/W control 64-HTQFP 0 to 85
PackageHTQFP
Current5mA
MountingSurface Mount
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TAS5701PAPR technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
18V
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Output Power
20W
Max Power Dissipation
600mW
Mount
Surface Mount
Output Power
20W
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
600mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
TAS5701
Supply Current
5mA
Supply Type
Quint
Weight
0.009108oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5701PAPR Datasheet
Download the complete datasheet for Texas Instruments TAS5701PAPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

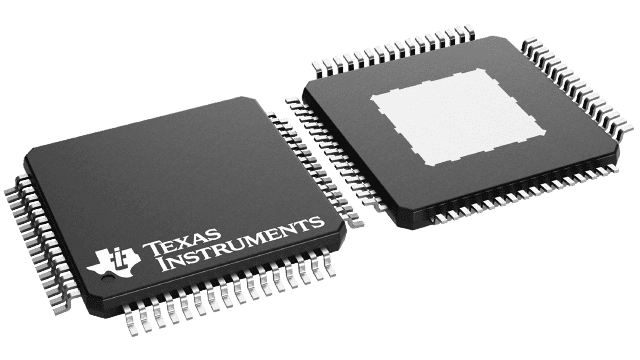

Product Images
