Texas Instruments
TAS5706PAPR
20-W Stereo Closed-loop I2S Audio Power Amplifier with Speaker EQ and DRC 64-HTQFP 0 to 85
PackageHTQFP
Current80mA
MountingSurface Mount
Power20.6W
Quick Jump:
Technical Specifications
Texas Instruments TAS5706PAPR technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
24V
Features
I²C
Height
1.2mm
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Output Power
20.6W
Max Power Dissipation
2.89W
Mount
Surface Mount
Output Power
20.6W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.89W
Power Supply Rejection Ratio (PSRR)
60dB
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Type
Dual
Thickness
1mm
Weight
0.009108oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5706PAPR Datasheet
Download the complete datasheet for Texas Instruments TAS5706PAPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

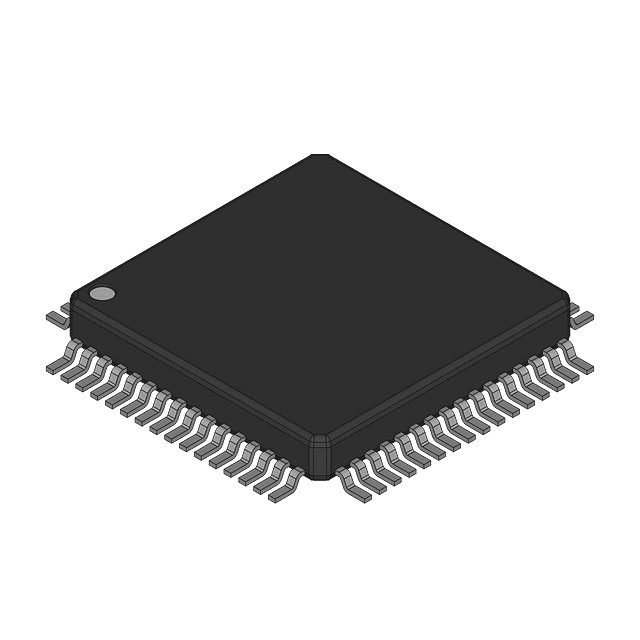

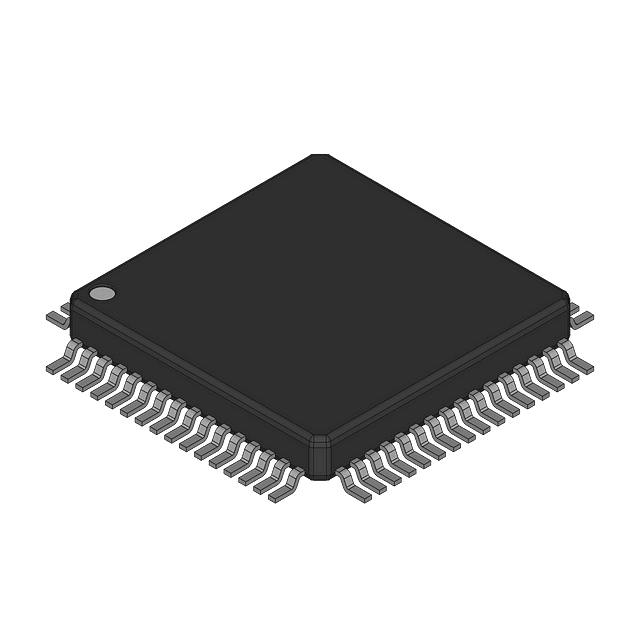

Product Images
