Texas Instruments
TAS5709PHPR
20-W stereo, 8- to 24-V supply, digital input, open loop Class-D audio amplifier w/ speaker EQ & DRC 48-HTQFP 0 to 85
PackageHTQFP
Current30mA
Power20.6W
Quick Jump:
Technical Specifications
Texas Instruments TAS5709PHPR technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
18V
Features
I²C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Output Power
20.6W
Max Power Dissipation
5W
Min Supply Voltage (DC)
3V
Output Power
20.6W
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
5W
Radiation Hardening
No
RoHS Compliant
Yes
Series
TAS5709
Supply Current
30mA
Supply Type
Triple
Weight
0.004744oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5709PHPR Datasheet
Download the complete datasheet for Texas Instruments TAS5709PHPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

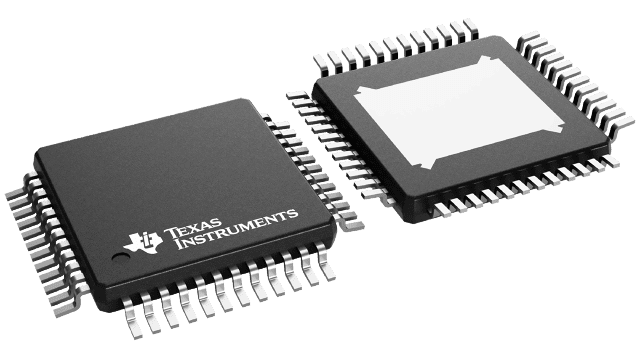

Product Images
