Texas Instruments
TAS5715PHP
25-W stereo, 8- to 26-V, digital input, open loop Class-D audio amplifier with EQ, DRC, & HP 48-HTQFP 0 to 85
PackageHTQFP
Current85mA
Power25W
Quick Jump:
Technical Specifications
Texas Instruments TAS5715PHP technical specifications.
General
Package/Case
HTQFP
Features
I²C
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Output Power
41.5W
Max Power Dissipation
2W
Min Supply Voltage (DC)
3V
Output Power
25W
Package Quantity
250
Packaging
Tray
Power Dissipation
2W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
85mA
Thickness
1mm
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5715PHP Datasheet
Download the complete datasheet for Texas Instruments TAS5715PHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

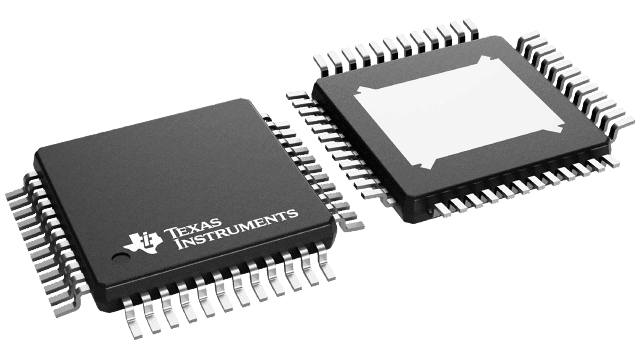

Product Images
