Frequency400kHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TCA6416APWR technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 400kHz |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Number of Channels | 16 |
| Number of I/Os | 16 |
| Number of Outputs | 16 |
| Output Type | PUSH-PULL |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1mm |
| Weight | 0.003157oz |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TCA6416APWR Datasheet
Download the complete datasheet for Texas Instruments TCA6416APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

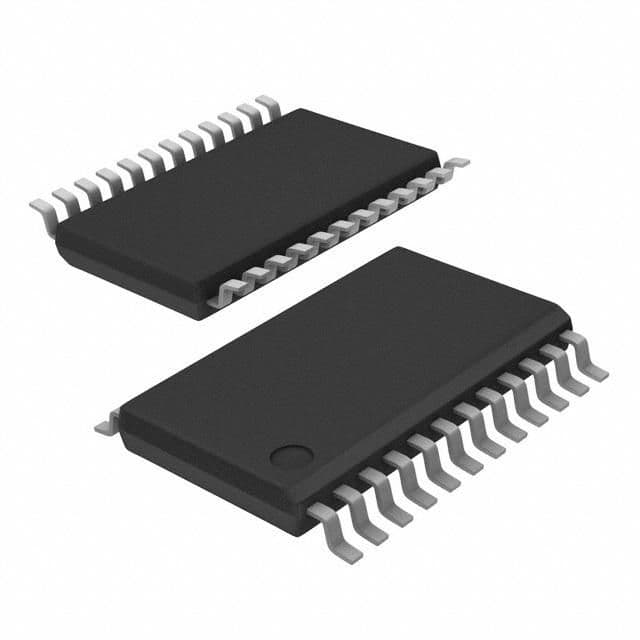

Product Images
