12-bit, 6 MSPS Analog-to-Digital Converter (ADC) with a parallel interface. Features 4 analog inputs and a unipolar polarity. Operates with supply voltages from 3V to 5.25V, consuming 186mW typical power. Offers 1.5 LSB Integral Nonlinearity and 69dB Signal-to-Noise Ratio. Packaged in a 32-TSSOP, lead-free, RoHS compliant component.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206CDARG4 technical specifications.
General
| Package/Case | TSSOP |
| Conversion Rate | 6000KS/s |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 36mA |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 4 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 186mW |
| Power Dissipation | 216mW |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 6MS/s |
| Signal to Noise Ratio (SNR) | 69dB |
| Spurious-free dynamic range (SFDR) | 71dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments THS1206CDARG4 Datasheet
Download the complete datasheet for Texas Instruments THS1206CDARG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

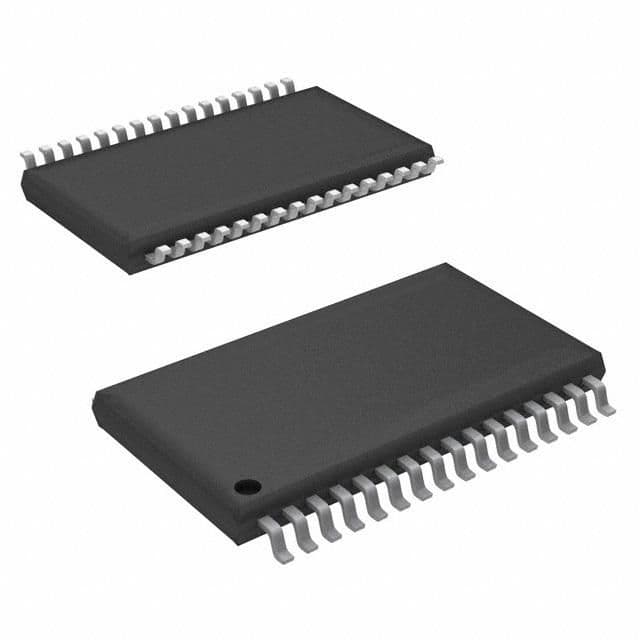

Product Images
