12-bit, 6 MSPS Analog-to-Digital Converter (ADC) featuring a quad-channel, configurable input. Offers a parallel interface, 1.5 LSB Integral Nonlinearity (INL), and 69 dB Signal-to-Noise Ratio (SNR). Includes an integrated 16x FIFO, channel autoscan capability, and operates from a 3V to 5.25V supply range. Power consumption is 186mW with a maximum power dissipation of 600mW. Supplied in a 32-TSSOP package, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current36mA
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206IDA technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Current
36mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1206IDA Datasheet
Download the complete datasheet for Texas Instruments THS1206IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

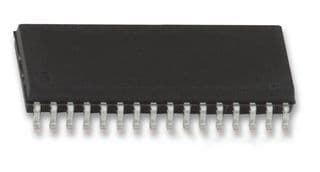

Product Images
