12-bit, 6 MSPS Analog-to-Digital Converter (ADC) featuring simultaneous sampling across four channels. Offers a parallel interface for DSP and microcontroller integration, with automatic channel scanning. Achieves 69dB Signal-to-Noise Ratio (SNR) and 71dB Spurious-free dynamic range (SFDR), with an Integral Nonlinearity (INL) of 1.5 LSB. Operates from a 4.75V to 5.25V supply, consuming a nominal 36mA current. Packaged in a 32-TSSOP, this RoHS compliant component supports a wide operating temperature range of -40°C to 85°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1207CDA technical specifications.
General
Package/Case
TSSOP
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Inputs
4
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6000000S/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1207CDA Datasheet
Download the complete datasheet for Texas Instruments THS1207CDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

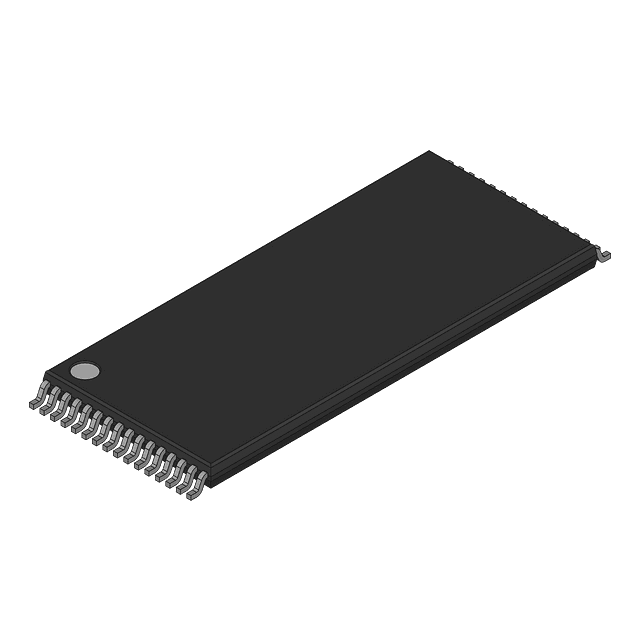

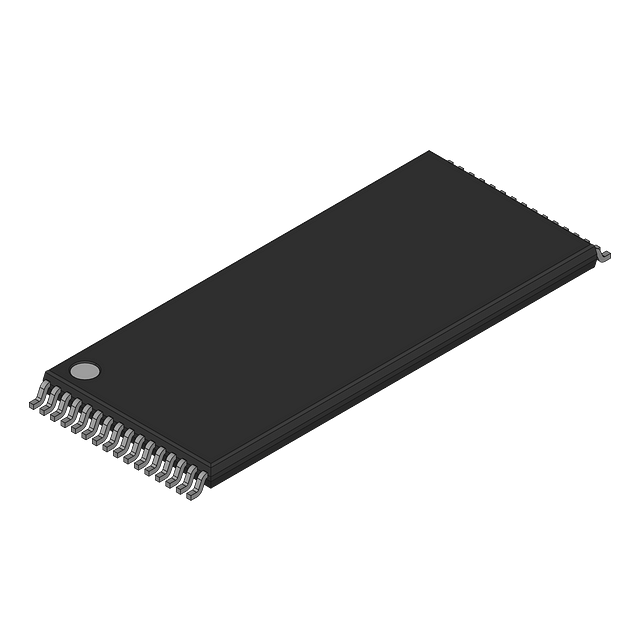

Product Images
