12-bit, 6 MSPS Analog-to-Digital Converter (ADC) featuring simultaneous sampling of four input channels. Offers a parallel interface for DSP/microprocessor integration and automatic channel scanning. Achieves 1.5 LSB Integral Nonlinearity (INL) and 69 dB Signal to Noise Ratio (SNR). Operates within a -40°C to 85°C temperature range with a 4.75V to 5.25V supply voltage. Packaged in a 32-TSSOP, this lead-free and RoHS compliant component has a maximum power dissipation of 216mW.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1207IDA technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1207IDA Datasheet
Download the complete datasheet for Texas Instruments THS1207IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

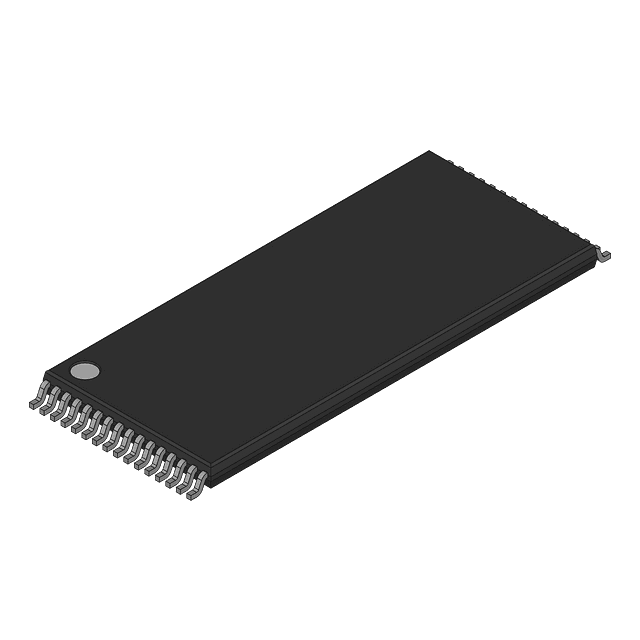

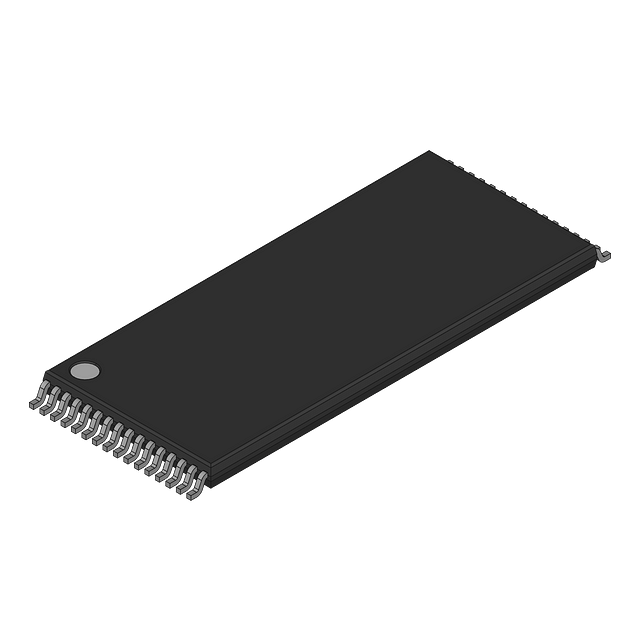

Product Images
