12-bit, 8 MSPS Analog-to-Digital Converter (ADC) featuring dual channels and a parallel interface. Offers 1.5 LSB Integral Nonlinearity (INL) and 69dB Signal-to-Noise Ratio (SNR). Operates from a 3V to 5.25V supply voltage with a typical supply current of 36mA. Includes a 16x FIFO buffer and channel autoscan functionality. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS12082CDAR technical specifications.
General
Package/Case
TSSOP
Conversion Rate
8000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
2
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
8MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS12082CDAR Datasheet
Download the complete datasheet for Texas Instruments THS12082CDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

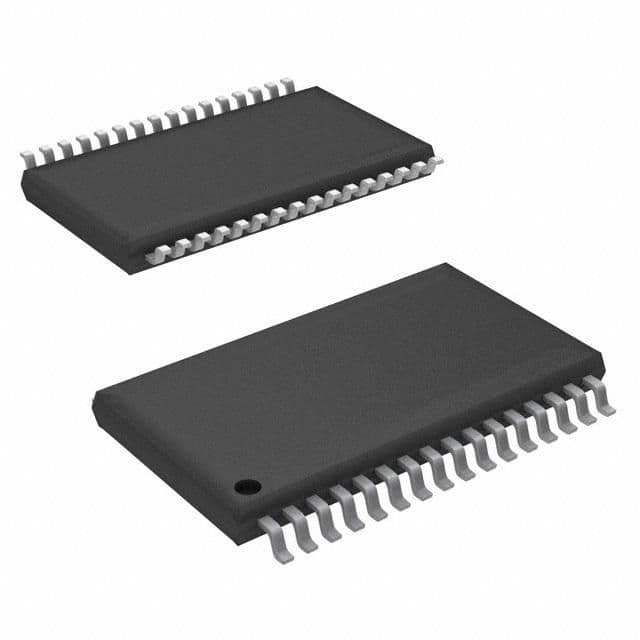

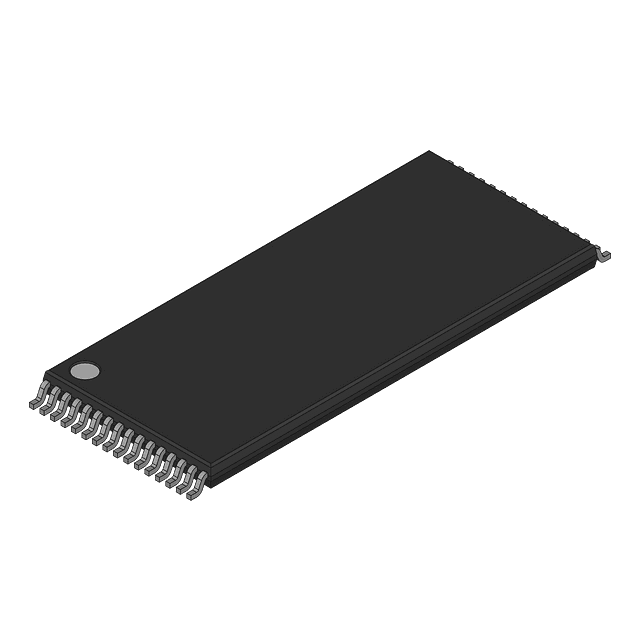

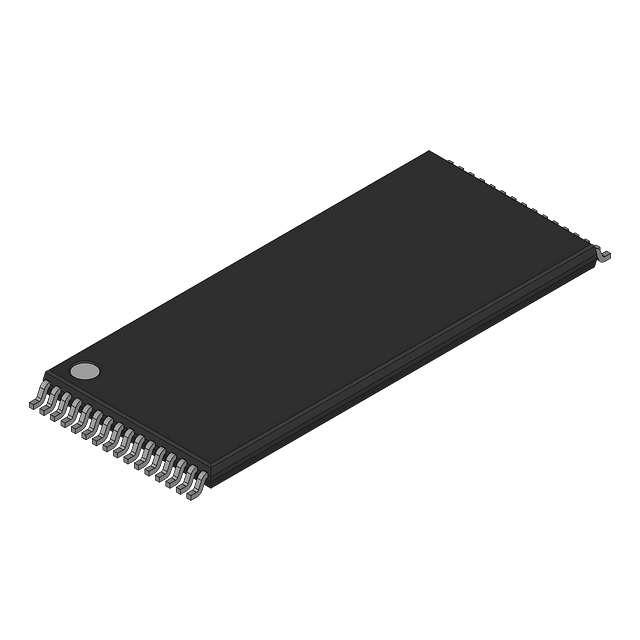

Product Images
