12-bit, 8 MSPS Analog-to-Digital Converter (ADC) featuring dual channels and a parallel interface for DSP/microprocessor integration. Offers a 16x FIFO buffer, channel autoscan functionality, and low power consumption. Operates within a 3V to 5.25V supply voltage range, with a maximum power dissipation of 216mW. Achieves 1.5 LSB Integral Nonlinearity (INL) and a Signal-to-Noise Ratio (SNR) of 69dB. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTSSOP
Current36mA
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS12082IDA technical specifications.
General
Package/Case
TSSOP
Conversion Rate
8000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
216mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
2
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
8MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Current
36mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS12082IDA Datasheet
Download the complete datasheet for Texas Instruments THS12082IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

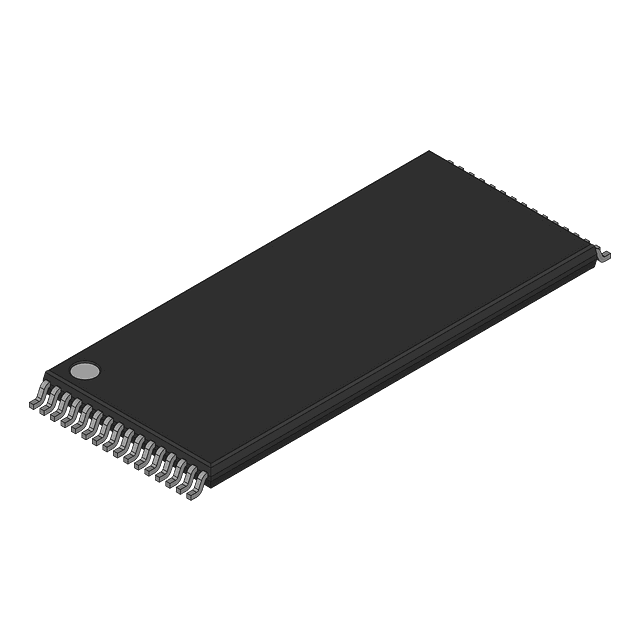

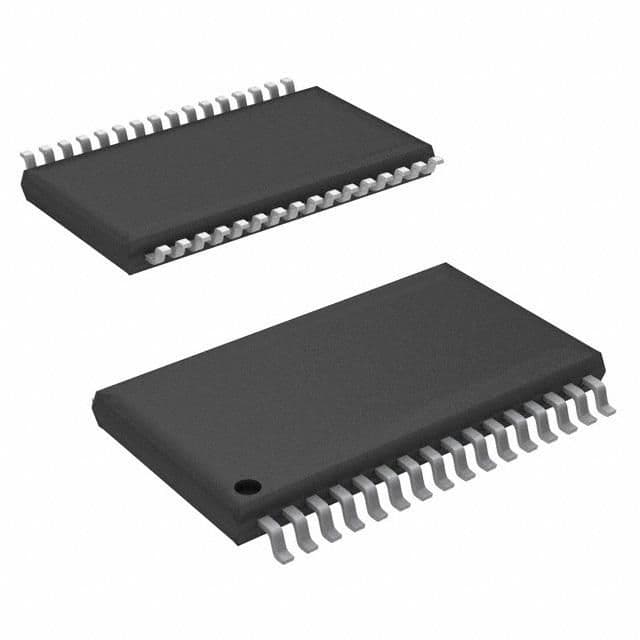

Product Images
