12-bit, dual-channel Analog-to-Digital Converter (ADC) with an 8 MSPS sampling rate. Features a parallel interface, channel autoscan, and unipolar polarity. Offers 1.5 LSB Integral Nonlinearity (INL) and 69dB Signal-to-Noise Ratio (SNR). Operates from a 4.75V to 5.25V supply, consuming 186mW power. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for -40°C to 85°C operation.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1209IDA technical specifications.
General
Package/Case
TSSOP
Conversion Rate
8000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
218mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Nominal Supply Current
38mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Inputs
2
Operating Supply Voltage
5.25V
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
8000000S/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1209IDA Datasheet
Download the complete datasheet for Texas Instruments THS1209IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

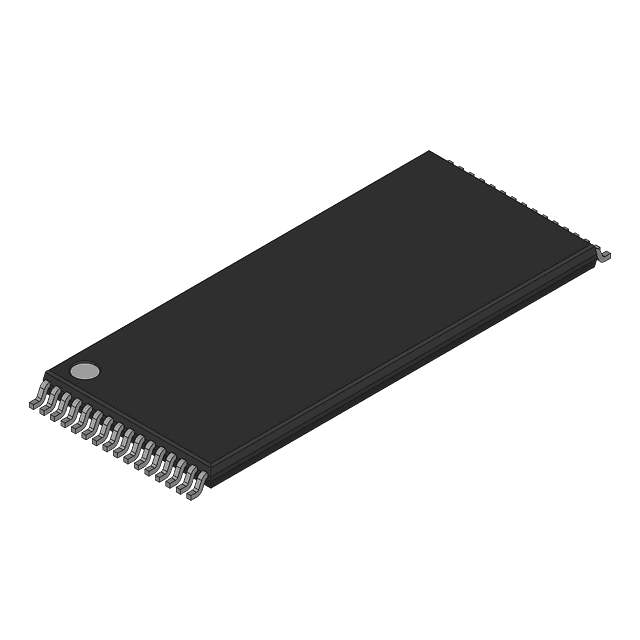

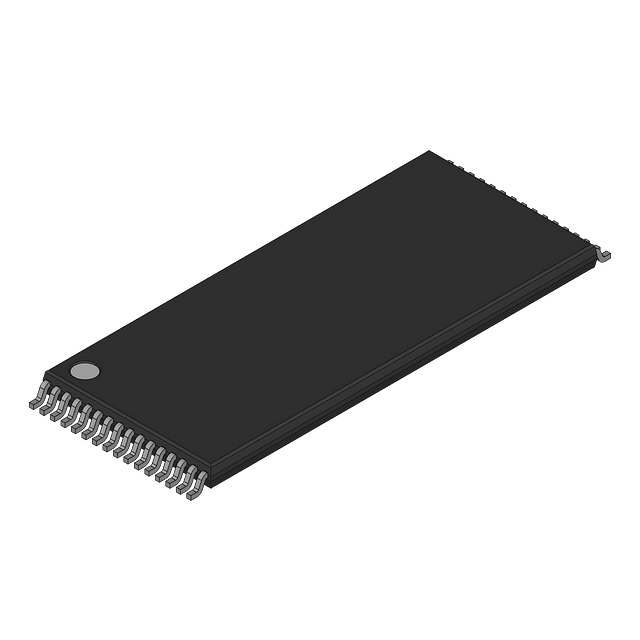

Product Images
