Texas Instruments
THS3001HVIDGNG4
420MHz Current-Feedback Op Amp, 1.75GHz GBW, 6500V/µs SR, 120mA Out, HVSSOP
High-speed current-feedback operational amplifier featuring a 420MHz -3dB bandwidth and 1.75GHz gain bandwidth product. This single-channel amplifier offers a 6500V/µs slew rate and 120mA output current per channel. Operating from dual supplies between 4.5V and 18.5V, with a maximum supply voltage of 32V, it provides 62dB CMRR and 65dB PSRR. Packaged in an 8-HVSSOP, this RoHS compliant component operates across a -40°C to 85°C temperature range.
PackageHVSSOP
Current9.5mA
Power1.71W
Quick Jump:
Technical Specifications
Texas Instruments THS3001HVIDGNG4 technical specifications.
General
-3db Bandwidth
420MHz
Bandwidth
420MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
62dB
Gain Bandwidth Product
1.75GHz
Input Bias Current
15uA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Max Dual Supply Voltage
18.5V
Min Dual Supply Voltage
4.5V
Max I/O Voltage
3mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.71W
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
6.9mA
Output Current per Channel
120mA
Package Quantity
80
Packaging
Rail/Tube
Power Dissipation
1.71W
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
40ns
Slew Rate
6500V/µs
Supply Current
9.5mA
Unity Gain Bandwidth Product
1.75GHz
Weight
0.000861oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS3001HVIDGNG4 Datasheet
Download the complete datasheet for Texas Instruments THS3001HVIDGNG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

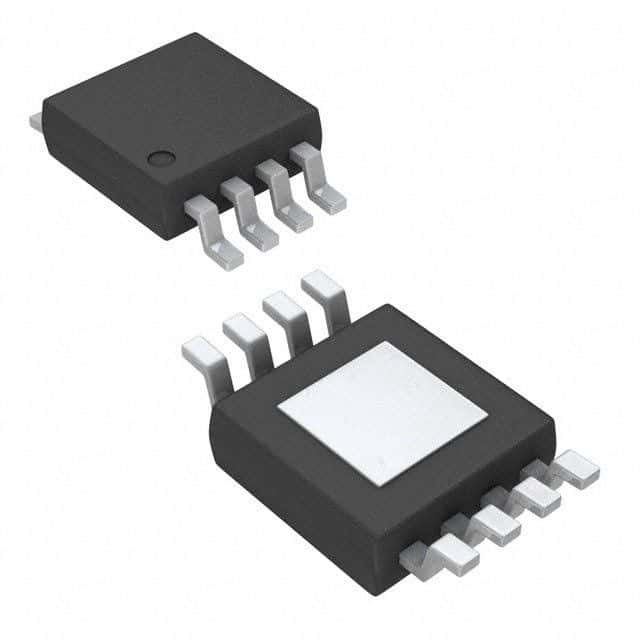

Product Images
