Single, high-voltage, low-distortion current-feedback operational amplifier with a 235MHz -3dB bandwidth and 7300V/µs slew rate. Features a 9.5mA operating supply current, 280mA output current per channel, and a 2nV/sqrt Hz input voltage noise density. Operates from dual supply voltages between 5V and 15V, with a maximum supply voltage of 30V. Packaged in an 8-SO PowerPAD with a 4.89mm length, 3.9mm width, and 1.48mm height. RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSOIC
Current9.5mA
Power2.18W
Quick Jump:
Technical Specifications
Texas Instruments THS3091DDA technical specifications.
General
-3db Bandwidth
235MHz
Bandwidth
235MHz
Package/Case
SOIC
Common Mode Rejection Ratio
60dB
Dual Supply Voltage
9V
Gain Bandwidth Product
235MHz
Height
1.48mm
Input Bias Current
20uA
Input Offset Voltage (Vos)
900uV
Input Voltage Noise Density
2nV/sqrt Hz
Lead Free
Lead Free
Length
4.89mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max I/O Voltage
4mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.18W
Max Supply Voltage
30V
Min Supply Voltage
10V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
9.5mA
Output Current per Channel
280mA
Package Quantity
75
Packaging
Rail/Tube
Power Dissipation
2.18W
Power Supply Rejection Ratio (PSRR)
68dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
42ns
Slew Rate
7300V/µs
Supply Current
9.5mA
Weight
0.00249oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS3091DDA Datasheet
Download the complete datasheet for Texas Instruments THS3091DDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

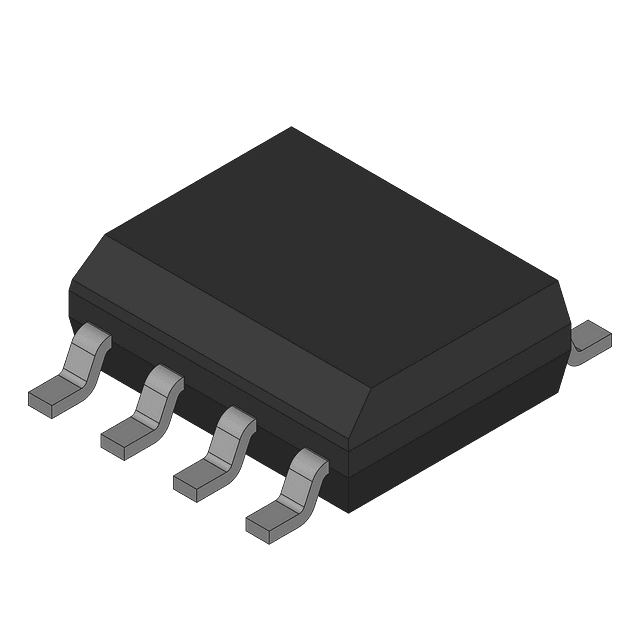

Product Images
