Single-channel current-feedback operational amplifier featuring a 130MHz -3dB bandwidth and 1700V/µs slew rate. Delivers high output drive with 490mA per channel, operating from a 5V to 30V supply range. Offers 62dB common mode rejection ratio and 62dB power supply rejection ratio. Packaged in an 8-HVSSOP, this lead-free and RoHS compliant amplifier operates from -40°C to 85°C.
PackageHVSSOP
Current8.5mA
Power1.71W
Quick Jump:
Technical Specifications
Texas Instruments THS3120CDGNR technical specifications.
General
-3db Bandwidth
130MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
62dB
Gain Bandwidth Product
130MHz
Input Bias Current
20uA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max I/O Voltage
8mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.71W
Max Supply Voltage
30V
Min Supply Voltage
10V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
7mA
Output Current per Channel
490mA
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
1.71W
Power Supply Rejection Ratio (PSRR)
62dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
11ns
Slew Rate
1700V/µs
Supply Current
8.5mA
Weight
0.000861oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS3120CDGNR Datasheet
Download the complete datasheet for Texas Instruments THS3120CDGNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

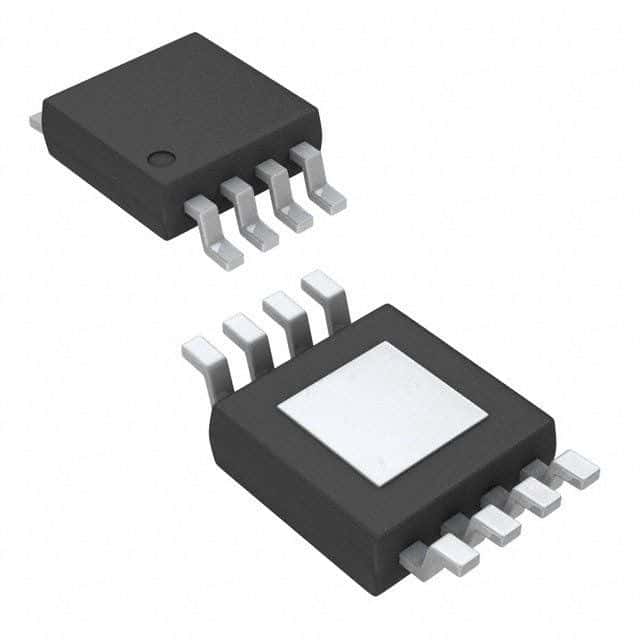

Product Images
