High-performance single-channel, voltage-feedback operational amplifier with a 290MHz -3dB bandwidth and 270MHz gain bandwidth product. Features a 310V/µs slew rate and 110mA output current per channel. Operates from a 4.5V to 16.5V dual supply or 9V to 32V single supply, with a typical supply current of 7.8mA. Offers 90dB common mode rejection ratio and 75dB power supply rejection ratio. Packaged in an 8-pin HVSSOP, this RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
PackageHVSSOP
Current9.5mA
Power2.14W
Quick Jump:
Technical Specifications
Texas Instruments THS4011CDGNRG4 technical specifications.
General
-3db Bandwidth
290MHz
Bandwidth
290MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
270MHz
Input Bias Current
8uA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
4.5V
Max I/O Voltage
6mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.14W
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
7.8mA
Output Current per Channel
110mA
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
2.14W
Power Supply Rejection Ratio (PSRR)
75dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
37ns
Slew Rate
310V/µs
Supply Current
9.5mA
Unity Gain Bandwidth Product
270MHz
Voltage Gain
81.58dB
Weight
0.000861oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4011CDGNRG4 Datasheet
Download the complete datasheet for Texas Instruments THS4011CDGNRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

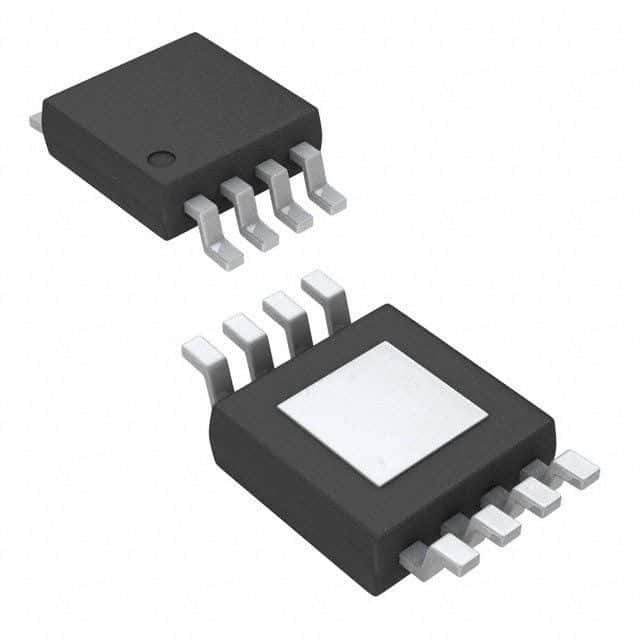

Product Images
