Differential amplifier IC featuring a 100MHz -3dB bandwidth and 100MHz gain bandwidth product. This single-channel operational amplifier offers a high slew rate of 55V/µs and a settling time of 60ns. It operates with dual supply voltages from 1.5V to 1.75V, or single supply from 3V to 3.5V, with a maximum power dissipation of 1.71W. Key specifications include a 64dB CMRR, 68dB PSRR, 820MR input resistance, and 1.2pA input bias current. Packaged in an 8-pin HVSSOP, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
PackageHVSSOP
Current13.5mA
Power1.71W
Quick Jump:
Technical Specifications
Texas Instruments THS4120CDGNG4 technical specifications.
General
-3db Bandwidth
100MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
100MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
64dB
Dual Supply Voltage
1.65V
Gain Bandwidth Product
100MHz
Input Bias Current
1.2pA
Input Offset Voltage (Vos)
8mV
Input Resistance
820MR
Lead Free
Lead Free
Max Dual Supply Voltage
1.75V
Min Dual Supply Voltage
1.5V
Max I/O Voltage
8mV
Max Input Voltage
-100mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.71W
Max Supply Voltage
3.5V
Min Supply Voltage
3V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
11mA
Output Current per Channel
100mA
Package Quantity
80
Packaging
Rail/Tube
Power Dissipation
1.71W
Power Supply Rejection Ratio (PSRR)
68dB
RoHS Compliant
Yes
Series
THS4120
Settling Time
60ns
Slew Rate
55V/µs
Supply Current
13.5mA
Voltage Gain
66dB
Weight
0.000861oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4120CDGNG4 Datasheet
Download the complete datasheet for Texas Instruments THS4120CDGNG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

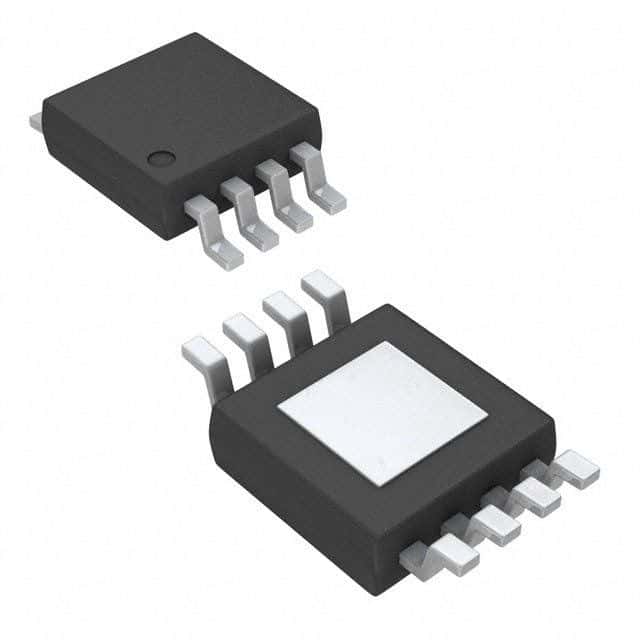

Product Images
