Fully differential operational amplifier featuring a 145MHz -3dB bandwidth and 490V/µs slew rate. This single-channel amplifier offers rail-to-rail output, a 95MHz gain bandwidth product, and operates from 1.5V to 5.5V dual supply or 2.5V to 5.5V single supply. With 80dB CMRR and PSRR, it provides excellent signal integrity. The component is supplied in an 8-pin MSOP package, suitable for surface mount applications, and operates within a -40°C to 85°C temperature range.
PackageMSOP
Current1.14mA
Quick Jump:
Technical Specifications
Texas Instruments THS4521IDGKT technical specifications.
General
-3db Bandwidth
145MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
145MHz
Package/Case
MSOP
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
95MHz
Height
0.97mm
Input Bias Current
900nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
1.5V
Max I/O Voltage
2mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.14mA
Operating Supply Voltage
5V
Output Current
100mA
Output Current per Channel
55mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
490V/µs
Supply Current
1.14mA
Supply Type
Single, Dual
Termination
SMD/SMT
Unity Gain Bandwidth Product
95MHz
Voltage Gain
119dB
Weight
0.000935oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4521IDGKT Datasheet
Download the complete datasheet for Texas Instruments THS4521IDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

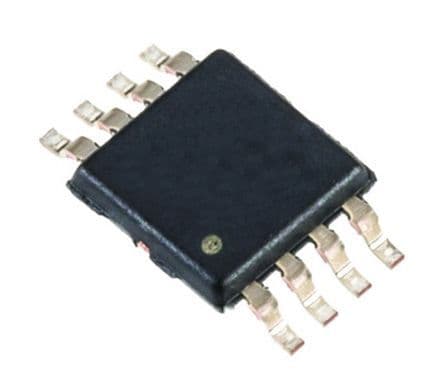

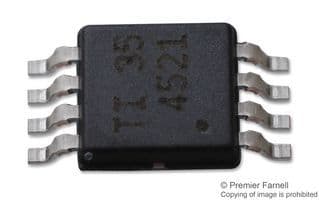

Product Images
