TEXAS INSTRUMENTS

THS4524IDBT

Datasheet

4-Ch Diff Op Amp, 145MHz BW, 420V/µs SR, Rail-to-Rail, TSSOP

Texas Instruments

THS4524IDBT

Name: THS4524IDBT Texas Instruments
Brand: Texas Instruments
SKU: THS4524IDBT

4-Ch Diff Op Amp, 145MHz BW, 420V/µs SR, Rail-to-Rail, TSSOP

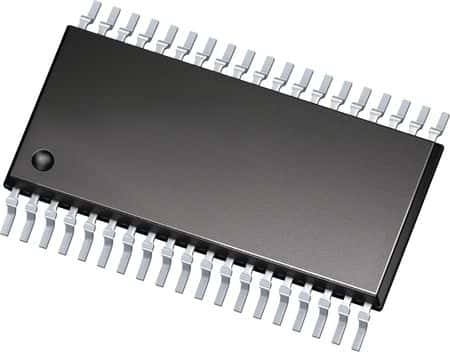

Quad channel, rail-to-rail output, fully differential amplifier featuring a 145MHz -3dB bandwidth and 420V/µs slew rate. This operational amplifier offers a 95MHz gain bandwidth product and operates from a 1.5V to 5.5V supply range, supporting both single and dual supply configurations. With 80dB common mode rejection ratio and 80dB power supply rejection ratio, it delivers high signal integrity. The component is housed in a 38-TSSOP package, suitable for operation between -40°C and 85°C.

PackageTSSOP

Current1mA

Quick Jump:

Technical Specifications

Texas Instruments THS4524IDBT technical specifications.

General

-3db Bandwidth	145MHz
Amplifier Type	DIFFERENTIAL
Bandwidth	145MHz
Package/Case	TSSOP
Common Mode Rejection Ratio	80dB
Gain Bandwidth Product	95MHz
Height	1.15mm
Input Bias Current	900nA
Input Offset Voltage (Vos)	2mV
Lead Free	Lead Free
Length	9.7mm
Max Dual Supply Voltage	2.75V
Min Dual Supply Voltage	1.5V
Max I/O Voltage	2mV
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	1.14mA
Max Supply Voltage	5.5V
Min Supply Voltage	2.5V
Number of Amplifiers	4
Number of Channels	4
Number of Circuits	4
Number of Elements	1
Operating Supply Current	1.14mA
Operating Supply Voltage	5V
Output Current	100mA
Output Current per Channel	55mA
Package Quantity	50
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	80dB
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Slew Rate	420V/µs
Supply Current	1mA
Supply Type	Single, Dual
Unity Gain Bandwidth Product	95MHz
Voltage Gain	119dB
Weight	0.004374oz
Width	4.4mm
