10-bit digital-to-analog converter (DAC) with a 125 MS/s conversion rate. Features 0.5 LSB differential nonlinearity and 1 LSB integral nonlinearity. Operates with a single supply voltage from 4.5V to 5.5V, consuming a nominal 25mA current. Packaged in a 28-SOIC format, this RoHS compliant component offers a settling time of 0.035 µs and an SFDR of 79 dB. Suitable for applications requiring high-speed, precise analog signal generation.
PackageSOIC
Power175mW
Quick Jump:
Technical Specifications
Texas Instruments THS5651AIDWR technical specifications.
General
| Package/Case | SOIC |
| Conversion Rate | 125MS/s |
| Differential Nonlinearity | 0.5LSB |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 175mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Nominal Supply Current | 25mA |
| Number of Bits | 10 |
| Number of Converters | 1 |
| Number of DAC Channels | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 175mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 125000000S/s |
| Series | CommsDAC™ |
| Settling Time | 0.035us |
| Spurious-free dynamic range (SFDR) | 79dB |
| Supply Type | Single |
| Weight | 0.025778oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments THS5651AIDWR Datasheet
Download the complete datasheet for Texas Instruments THS5651AIDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

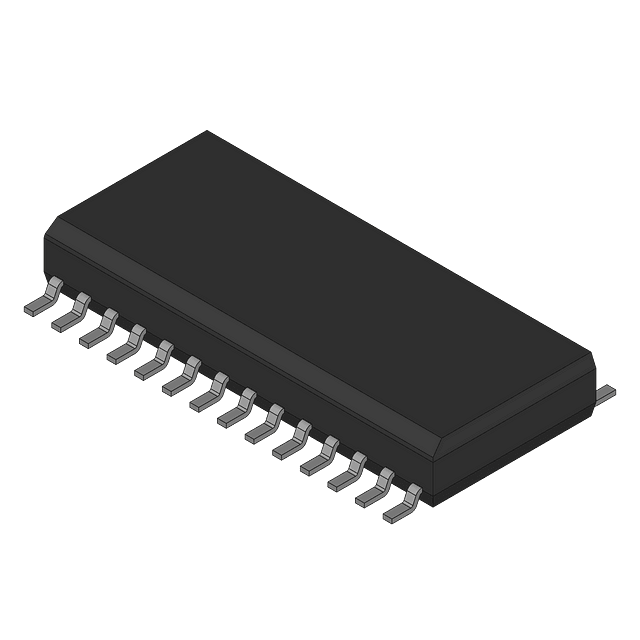

Product Images
