14-bit, 125MS/s Digital-to-Analog Converter (DAC) with a single channel and 1 converter. Features a parallel interface, 0.035µs settling time, and integral nonlinearity of 7 LSB. Operates with a supply voltage range of 4.5V to 5.5V, drawing 25mA nominal supply current. Packaged in a 28-TSSOP for surface mounting, with an operating temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Power175mW
Quick Jump:
Technical Specifications
Texas Instruments THS5671AIPWR technical specifications.
General
Package/Case
TSSOP
Conversion Rate
125MS/s
Integral Nonlinearity (INL)
7LSB
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
175mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Supply Current
25mA
Number of Bits
14
Number of Channels
1
Number of Converters
1
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Power Consumption
175mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
125000000S/s
Series
CommsDAC™
Settling Time
0.035us
Supply Type
Single
Weight
0.004145oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS5671AIPWR Datasheet
Download the complete datasheet for Texas Instruments THS5671AIPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

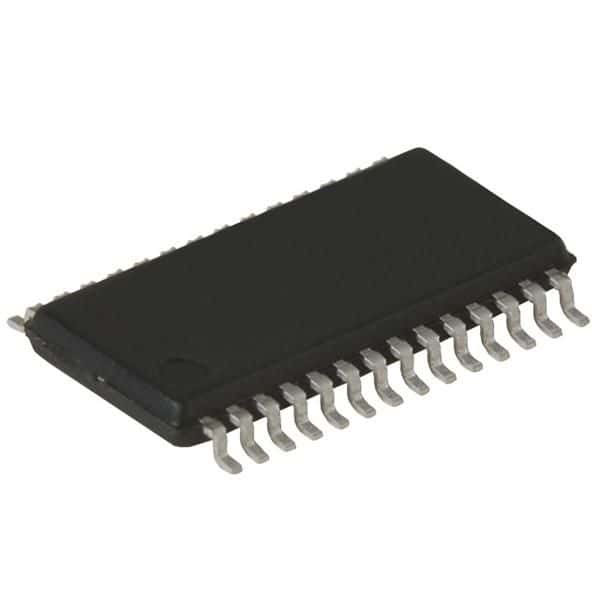

Product Images
