Texas Instruments
THS6032IDWPR
Low-Power, Dual Class G Amplifier and DSL/PLC Line Driver 20-SO PowerPAD -40 to 85
PackageHSOP
Quick Jump:
Technical Specifications
Texas Instruments THS6032IDWPR technical specifications.
General
Package/Case
HSOP
Gain Bandwidth Product
100MHz
Input Bias Current
12uA
Lead Free
Lead Free
Max I/O Voltage
5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
5.8W
Max Supply Voltage
32V
Min Supply Voltage
6V
Number of Channels
2
Operating Supply Voltage
15V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
120ns
Slew Rate
1200V/µs
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS6032IDWPR Datasheet
Download the complete datasheet for Texas Instruments THS6032IDWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

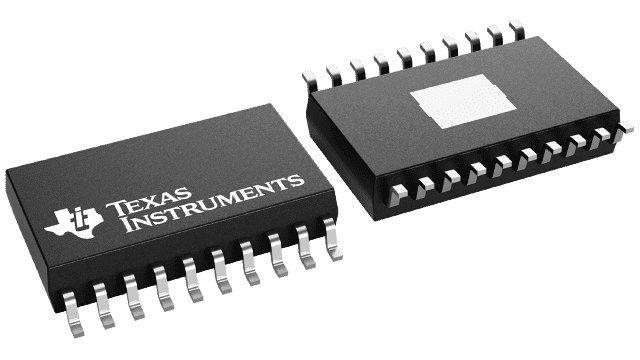

Product Images
