Dual high-speed programmable-gain amplifier featuring a 70MHz bandwidth and 85V/µs slew rate. Offers 80dB CMRR and 75dB PSRR, with a 70MHz gain-bandwidth product. Operates from a 4.5V to 16V dual supply or 9V to 32V single supply, drawing 7mA operating current. Housed in an HTSSOP package, this RoHS compliant component boasts a 1.7nV/√Hz input voltage noise density.
PackageHTSSOP
Current5.5mA
Quick Jump:
Technical Specifications
Texas Instruments THS7002CPWP technical specifications.
General
| -3db Bandwidth | 100MHz |
| Bandwidth | 70MHz |
| Package/Case | HTSSOP |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 70MHz |
| Input Bias Current | 6uA |
| Input Offset Voltage (Vos) | 5mV |
| Input Resistance | 1MR |
| Input Voltage Noise Density | 1.7nV/sqrt Hz |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 4.5V |
| Max I/O Voltage | 7mV |
| Max Input Voltage | 16.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 4.48W |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 9V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 7mA |
| Output Current per Channel | 95mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 85V/µs |
| Supply Current | 5.5mA |
| Unity Gain Bandwidth Product | 70MHz |
| Voltage Gain | 89dB |
| Weight | 0.00418oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments THS7002CPWP Datasheet
Download the complete datasheet for Texas Instruments THS7002CPWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

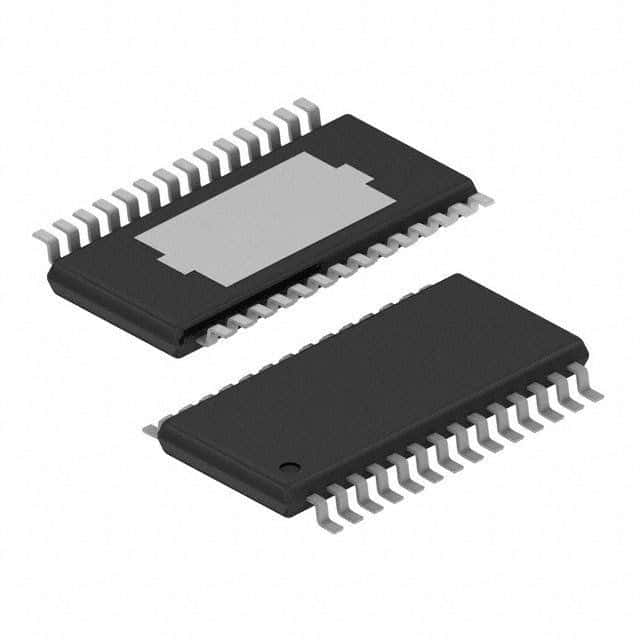

Product Images
