High-performance variable gain amplifier IC featuring a 300MHz -3dB bandwidth and 300MHz gain bandwidth product. Offers a 1250V/µs slew rate and 46.5dB voltage gain, suitable for demanding applications. Operates from a 4.5V to 5.5V supply with 40mA quiescent current, delivering 37mA output current per channel. Features 56dB CMRR and 70dB PSRR, with low input voltage noise density of 1.1nV/sqrt Hz. Packaged in an HTSSOP, this lead-free and RoHS compliant component operates across a -40°C to 85°C temperature range.
PackageHTSSOP
Quick Jump:
Technical Specifications
Texas Instruments THS7530PWPG4 technical specifications.
General
-3db Bandwidth
300MHz
Bandwidth
300MHz
Package/Case
HTSSOP
Common Mode Rejection Ratio
56dB
Gain Bandwidth Product
300MHz
Input Bias Current
20uA
Input Voltage Noise Density
1.1nV/sqrt Hz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
3W
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Channels
1
Number of Circuits
1
Operating Supply Current
40mA
Output Current per Channel
37mA
Package Quantity
90
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
RoHS Compliant
Yes
Series
THS7530
Slew Rate
1250V/µs
Voltage Gain
46.5dB
Weight
0.002046oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS7530PWPG4 Datasheet
Download the complete datasheet for Texas Instruments THS7530PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

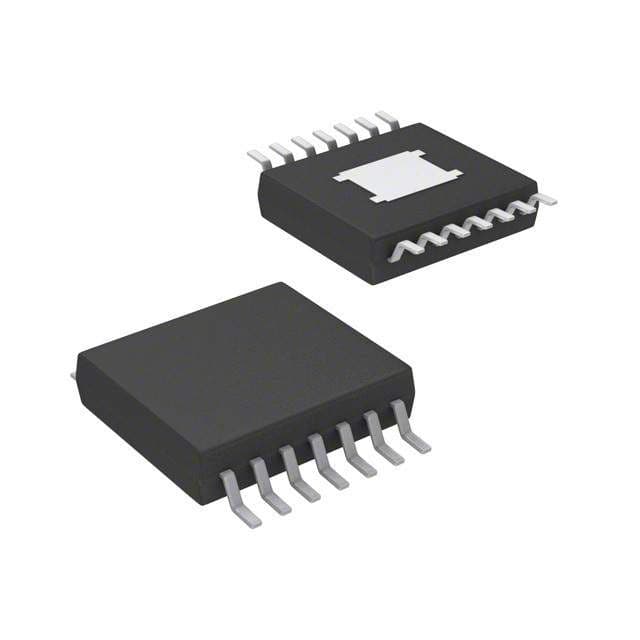

Product Images
