Triple 10-bit Digital-to-Analog Converter (DAC) featuring a 240MS/s conversion rate. This unipolar DAC offers a 10-bit resolution and supports a parallel interface. Designed for surface mounting, it operates within a 3V to 3.6V supply voltage range and has a nominal supply current of 114mA. The component boasts an integral nonlinearity of 1.5 LSB and a settling time of 15ns. It is RoHS compliant and packaged in a 48-HTQFP.
PackageHTQFP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments THS8135PHPG4 technical specifications.
General
Package/Case
HTQFP
Conversion Rate
240MS/s
Height
1mm
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
114mA
Number of Bits
10
Number of Channels
3
Number of Converters
3
Operating Supply Voltage
3.3V
Output Type
Voltage
Package Quantity
250
Packaging
Tray
Polarity
Unipolar
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
240000000S/s
Series
THS8135
Settling Time
15ns
Supply Type
Analog, Digital
Weight
0.004586oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS8135PHPG4 Datasheet
Download the complete datasheet for Texas Instruments THS8135PHPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

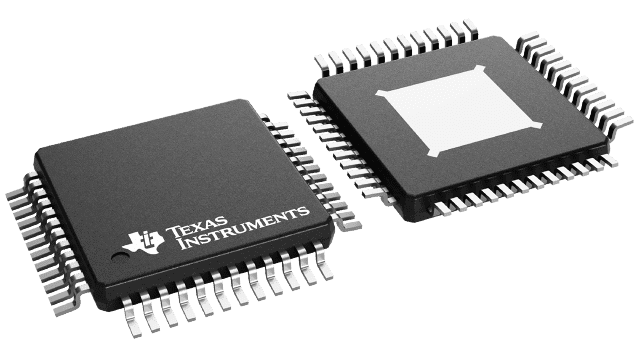

Product Images
