Triple 10-bit Digital-to-Analog Converter (DAC) with a 180 MSPS conversion rate. Features 3 channels, 10-bit resolution, and a parallel interface. Operates with a supply voltage of 3V to 3.6V, typically 3.3V, and offers a settling time of 15ns. Housed in a 48-HTQFP surface mount package, this component is RoHS compliant and suitable for operation between 0°C and 70°C.
PackageHTQFP
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Texas Instruments THS8136PHP technical specifications.
General
Package/Case
HTQFP
Conversion Rate
180MS/s
Height
1mm
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
475mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
10
Number of Channels
3
Number of Converters
3
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Polarity
Unipolar
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
180000000S/s
Series
THS8136
Settling Time
15ns
Supply Type
Analog, Digital
Weight
0.004586oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS8136PHP Datasheet
Download the complete datasheet for Texas Instruments THS8136PHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

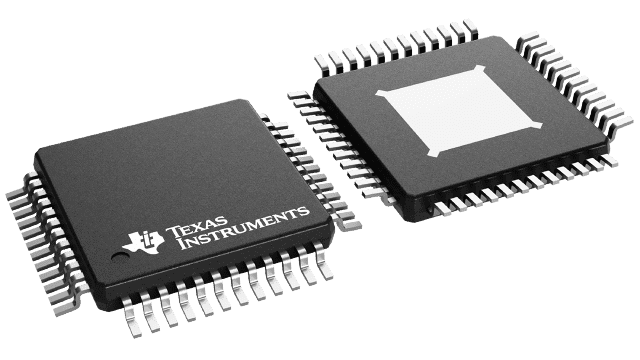

Product Images
