Texas Instruments
TIBPAL20R4-25CNT
Low-Power High-Performance Impact<TM> PAL<R> Circuits 24-PDIP 0 to 75
Frequency50MHz
PackagePDIP
Current105mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments TIBPAL20R4-25CNT technical specifications.
General
Access Time
25ns
Package/Case
PDIP
Frequency
50MHz
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Supply Current
105mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of I/Os
4
Operating Supply Voltage
5V
Package Quantity
15
Packaging
Rail/Tube
Propagation Delay
14ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IMPACT-X™ PAL®
Supply Current
105mA
Turn-On Delay Time
25ns
Weight
0.061853oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TIBPAL20R4-25CNT Datasheet
Download the complete datasheet for Texas Instruments TIBPAL20R4-25CNT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

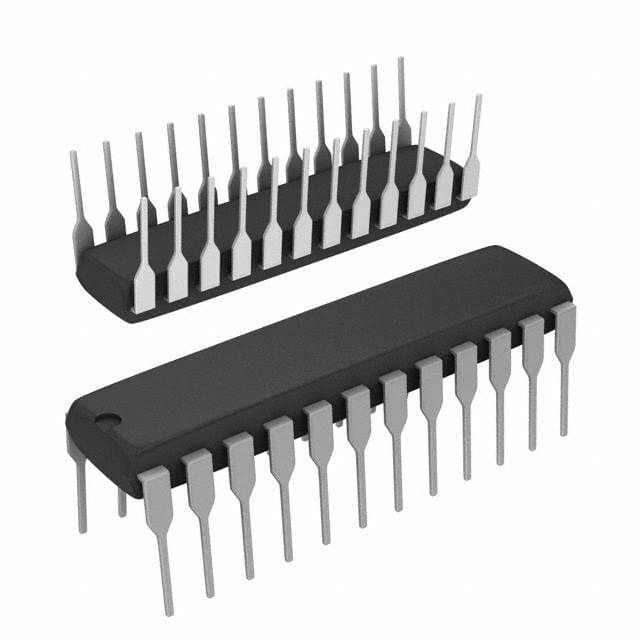

Product Images
