Dual low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 75dB common mode rejection ratio and a 6mV input offset voltage. Operates with dual supply voltages from 3.5V to 18V, consuming 1.4mA typical operating supply current. Packaged in an 8-SOIC (D) with dimensions of 4.9mm length, 3.91mm width, and 1.58mm height, suitable for -40°C to 85°C operation.
PackageD
Current5mA
Quick Jump:
Technical Specifications
Texas Instruments TL072ID technical specifications.
General
Bandwidth
3MHz
Package/Case
D
Common Mode Rejection Ratio
75dB
Dual Supply Voltage
9V
Gain Bandwidth Product
3MHz
Height
1.58mm
Input Bias Current
200pA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
6mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
3MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Supply Current
5mA
Technology
BIFET
Unity Gain Bandwidth Product
3MHz
Voltage Gain
106.02dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL072ID Datasheet
Download the complete datasheet for Texas Instruments TL072ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

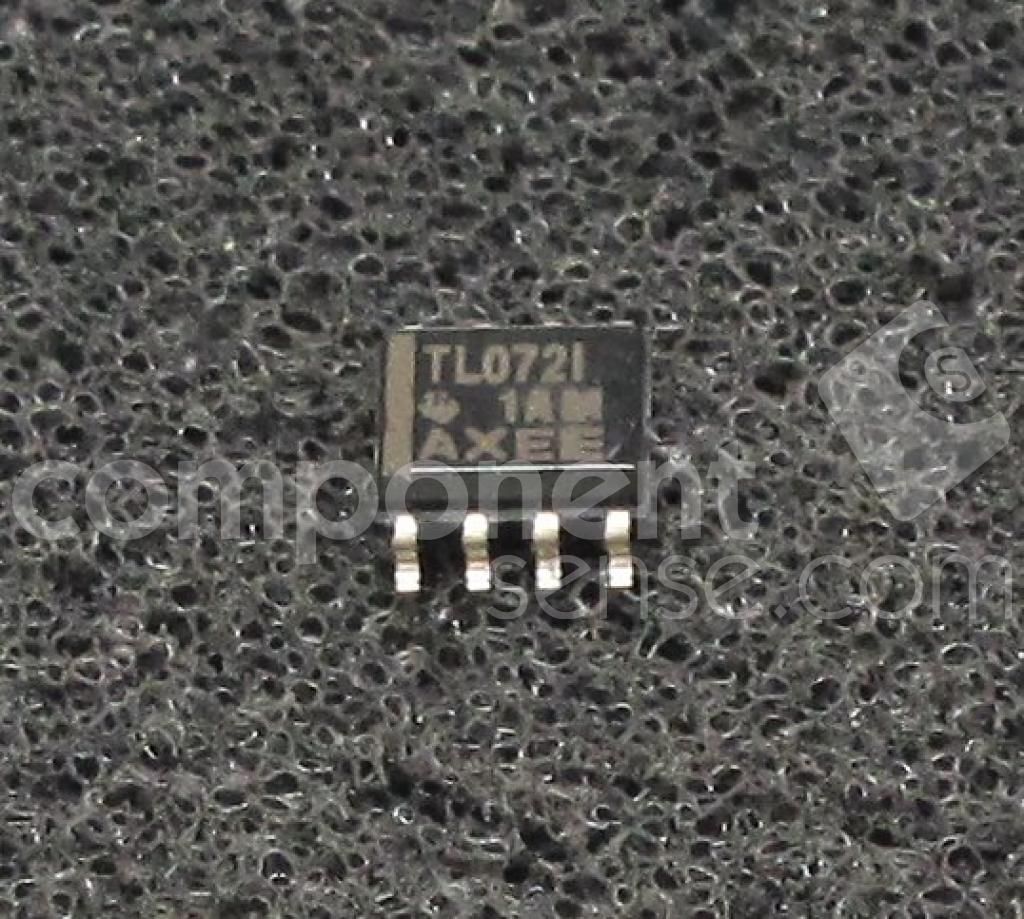

Product Images
