Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This general-purpose IC offers a 70dB common mode rejection ratio and a low input bias current of 200pA. Operating from 3.5V to 18V dual supply, it provides a 106dB voltage gain. The component is housed in a 14-SO package, is RoHS compliant, and operates across a -40°C to 85°C temperature range.
PackageSOP
Current10mA
Quick Jump:
Technical Specifications
Texas Instruments TL074CNSRG4 technical specifications.
General
Bandwidth
3MHz
Package/Case
SOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
3MHz
Input Bias Current
200pA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
3MHz
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Supply Current
10mA
Technology
BIFET
Unity Gain Bandwidth Product
3MHz
Voltage Gain
106.02dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL074CNSRG4 Datasheet
Download the complete datasheet for Texas Instruments TL074CNSRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

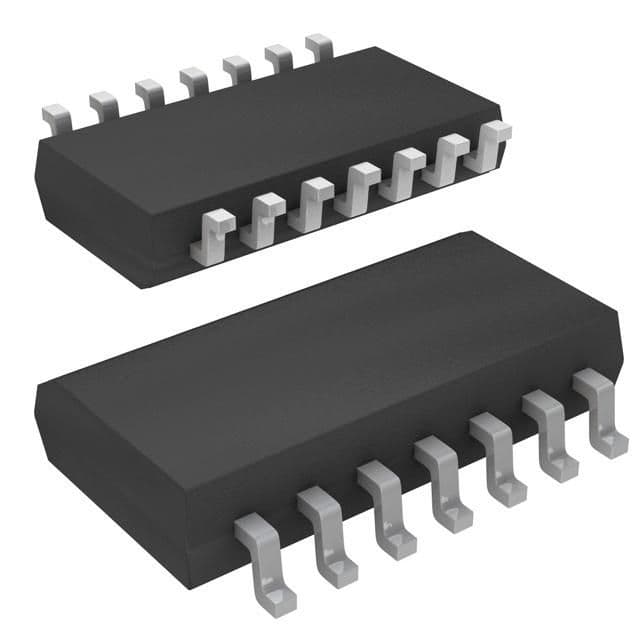

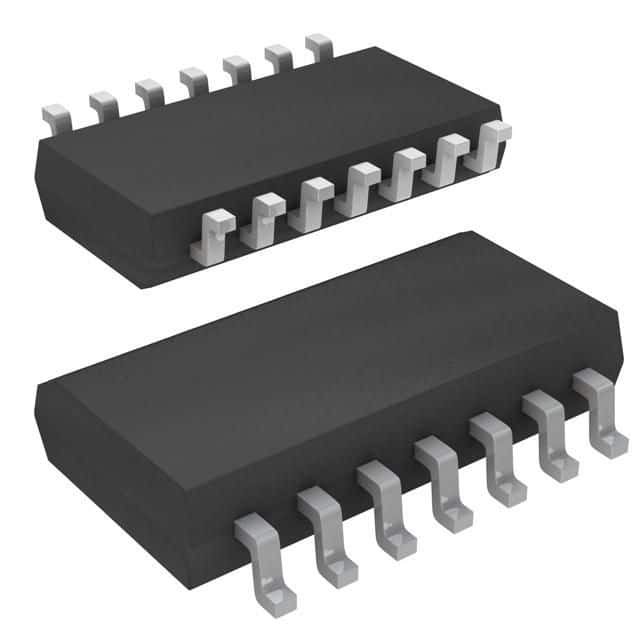

Product Images
