Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. Offers 4 independent amplifiers with a 75dB common mode rejection ratio and 6mV input offset voltage. Operates from ±3.5V to ±18V dual supply voltages, with a typical supply current of 1.4mA. Packaged in a 14-SOIC (D) for tape and reel distribution, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageD
Current11.2mA
Power680mW
Quick Jump:
Technical Specifications
Texas Instruments TL084IDR technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | D |
| Common Mode Rejection Ratio | 75dB |
| Gain Bandwidth Product | 3MHz |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 6mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max I/O Voltage | 6mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 18V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 680mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 11.2mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL084IDR Datasheet
Download the complete datasheet for Texas Instruments TL084IDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

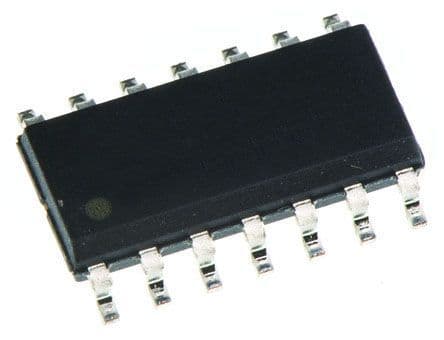

Product Images
