Quad-channel UART with 16-byte FIFO buffers, supporting data rates up to 1Mbps. Features a 5V operating voltage and 8MHz clock frequency. This surface-mount device is housed in a 68-pin PLCC package, operating from -40°C to 85°C. It offers a propagation delay of 50ns and a supply current of 50mA.
Frequency8MHz
PackagePLCC
Current50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TL16C554FN technical specifications.
General
| Package/Case | PLCC |
| Data Rate | 1Mbps |
| Frequency | 8MHz |
| Height | 4.06mm |
| Lead Free | Lead Free |
| Length | 24.23mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 50mA |
| Max Supply Voltage | 5.25V |
| Memory Size | 16B |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 50mA |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 50ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| DC Rated Voltage | 5V |
| Weight | 0.171777oz |
| Width | 24.23mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL16C554FN Datasheet
Download the complete datasheet for Texas Instruments TL16C554FN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

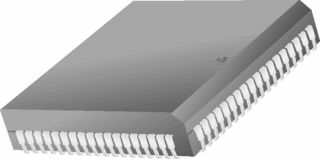

Product Images
