Step-down DC-DC controller and regulator with a 5V fixed output voltage and 1A maximum output current. Features a wide input voltage range from 4.75V to 60V, a TO-263-5 package, and an efficiency of 77%. Operates across a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageTO-263-5
Quick Jump:
Technical Specifications
Texas Instruments TL2575HV-05IKTTR technical specifications.
General
| Package/Case | TO-263-5 |
| Efficiency | 77% |
| Height | 4.83mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 60V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Current | 1A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Weight | 0.056128oz |
| Width | 9.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL2575HV-05IKTTR Datasheet
Download the complete datasheet for Texas Instruments TL2575HV-05IKTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

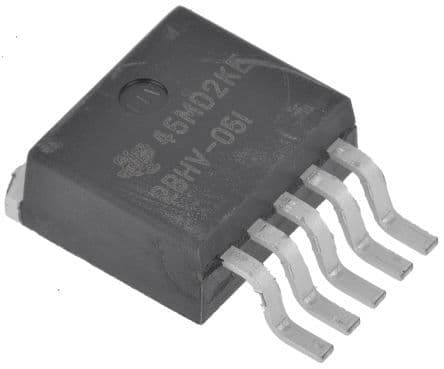

Product Images
