Adjustable precision shunt regulator, a single-channel integrated circuit, offers a 2.495V reference voltage with 1% tolerance. It operates with a cathode current of 600µA and supports an output current up to 100mA, with a maximum output voltage of 36V. This component features a TO-92 package, a maximum input voltage of 37V, and a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
Sign in to ask questions about the Texas Instruments TL431ACLP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

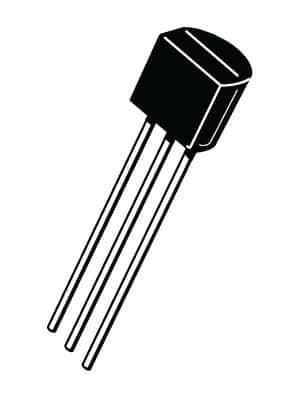

Texas Instruments TL431ACLP technical specifications.
| Package/Case | TO-92 |
| Cathode Current | 600uA |
| Current Rating | 100mA |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Length | 4.83mm |
| Max Input Voltage | 37V |
| Min Input Voltage | 2.495V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Output Voltage | 2.5V |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Voltage | 36V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 2.495V |
| RoHS Compliant | Yes |
| Tolerance | 1% |
| Weight | 0.00752oz |
| Width | 3.43mm |
| RoHS | Compliant |
